1
Engine displacement
50
2
Model
SR
3
Year
2018
4
Trim
SR 50 R H2O 2T Euro 4
5
Parts Catalog
Clutch
6

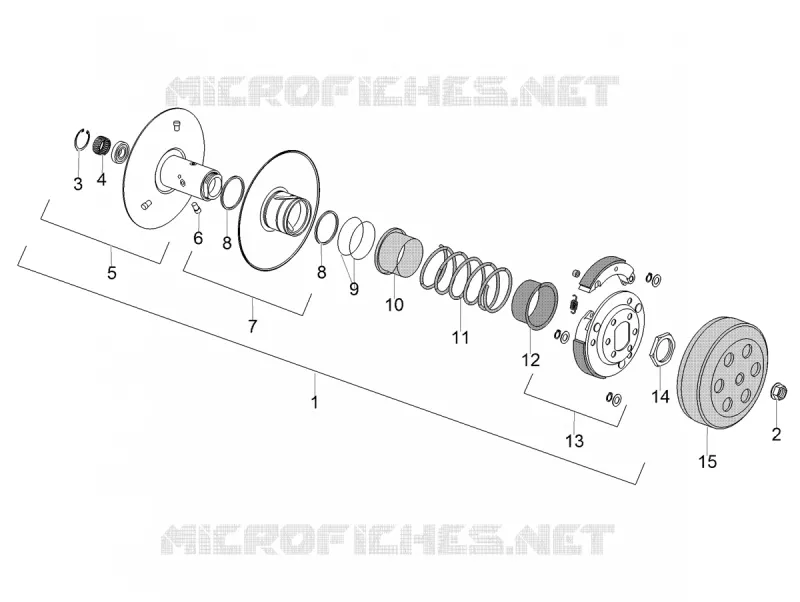

Parts Diagram
Parts Catalog
Clutch cover
by
Half-pulley assy., driving
Clutch
15
14
13
12
11
10
9
8
8
7
6
5
4
3
2
1
1
Secondary pulley
CM100109
£242,58 Unit Price incl. VAT
2
Flanged nut M10x1,25
289519
£1,27 Unit Price incl. VAT
3
Ring
006624
Not Available
4
Roller cage
289952
£16,25 Unit Price incl. VAT
5
Complete fixed secondary pulley
4795526
£175,70 Unit Price incl. VAT
6
Pin
482766
£1,97 Unit Price incl. VAT
7
Complete movable secondary pulley
827893
£66,31 Unit Price incl. VAT
8
Gasket ring
289950
£10,18 Unit Price incl. VAT
9
Gasket
289840
£2,44 Unit Price incl. VAT
10
Pulley side cap
483443
£7,33 Unit Price incl. VAT
11
Variator spring
478028
£19,14 Unit Price incl. VAT
12
Clutch side cap
487935
£15,84 Unit Price incl. VAT
13
Centrifugal clutch assy
CM1002045
£50,16 Unit Price incl. VAT
14
Ring nut
289955
£13,28 Unit Price incl. VAT
15
Clutch drum
289933
£48,05 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
