Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Rear mudguard
by
Water pump

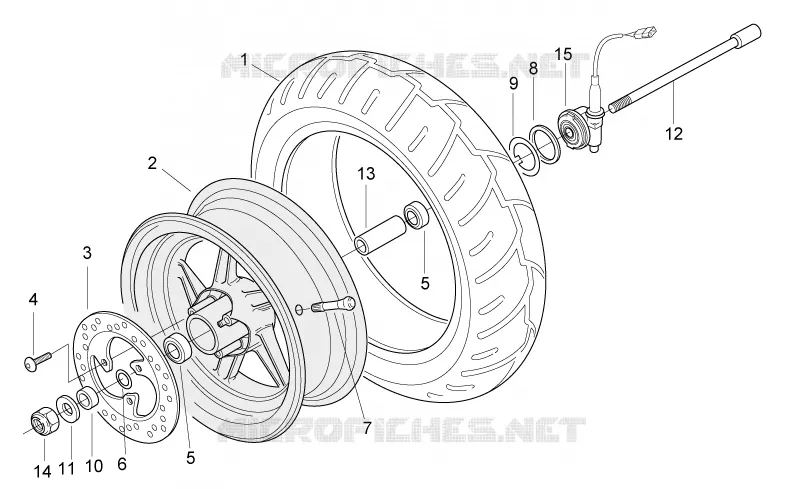

Front wheel
11
10
9
8
7
6
5
5
4
3
2
1
15
14
13
12
1
Front tyre
AP8209085
£85,75 Unit Price incl. VAT
2
Front wheel, black
AP8208947
£488,14 Unit Price incl. VAT
3
Brake disc D190
AP8213231
£46,99 Unit Price incl. VAT
4
Hex socket screw M8x30
AP8152056
£2,59 Unit Price incl. VAT
5
Bearing
AP8225123
£40,42 Unit Price incl. VAT
6
Gasket ring
AP8125782
£20,58 Unit Price incl. VAT
7
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
8
Gasket ring D40x50x4
AP8125743
£33,32 Unit Price incl. VAT
9
Drive key
AP8120865
£10,31 Unit Price incl. VAT
10
Front wheel spacer
AP8221119
£5,63 Unit Price incl. VAT
11
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
12
Front wheel spindle
AP8225271
£61,37 Unit Price incl. VAT
13
Front wheel ins.spacer
AP8225323
£17,12 Unit Price incl. VAT
14
Low self-locking nut M12x1,25
AP8150373
£4,96 Unit Price incl. VAT
15
Speed sensor
AP8202403
£53,81 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
