Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro ABS
5
Parts Catalog
Water pump II
6
Parts Diagram
Parts Catalog
Cylinder with piston
by
Front cylinder timing system
Water pump II
23
22
22
21
20
19
18
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Clutch side cover grigio zenith
B016874
Not Available
1
Clutch side cover antracite
878395
Not Available
1
Clutch side cover grigio zenith
B013637
Not Available
2
Shim washer
878734
£4,72 Unit Price incl. VAT
3
Nut M6
876529
£4,90 Unit Price incl. VAT
4
Pump support
B0142605
£136,28 Unit Price incl. VAT
4
Pump support
878685
Not Available
5
O-ring
878115
£10,18 Unit Price incl. VAT
6
O-ring
876538
£7,60 Unit Price incl. VAT
7
O-ring
224035
£0,83 Unit Price incl. VAT
8
Chain 52
846624
£51,41 Unit Price incl. VAT
9
Water pump cover grigio zenith
B013068
Not Available
9
Water pump cover
871068
Not Available
10
Gasket OR
848209
Not Available
11
Screw w/ flange
877850
£2,36 Unit Price incl. VAT
12
Screw w/ flange
874549
£2,48 Unit Price incl. VAT
13
Water pump cover gasket
877069
£18,61 Unit Price incl. VAT
14
Screw w/ flange
874550
£1,27 Unit Price incl. VAT
15
Rotor
880867
Not Available
16
Chain ring
875814
£11,45 Unit Price incl. VAT
17
Conical washer
834951
£1,16 Unit Price incl. VAT
18
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
19
Screw w/ flange M6x30
289731
Not Available
20
screw
CM179202
£1,27 Unit Price incl. VAT
21
Chain guide plate
B013345
£10,51 Unit Price incl. VAT
22
Water pump assy
B014258
Not Available
22
Water pump assy
8807955
Not Available
23
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT

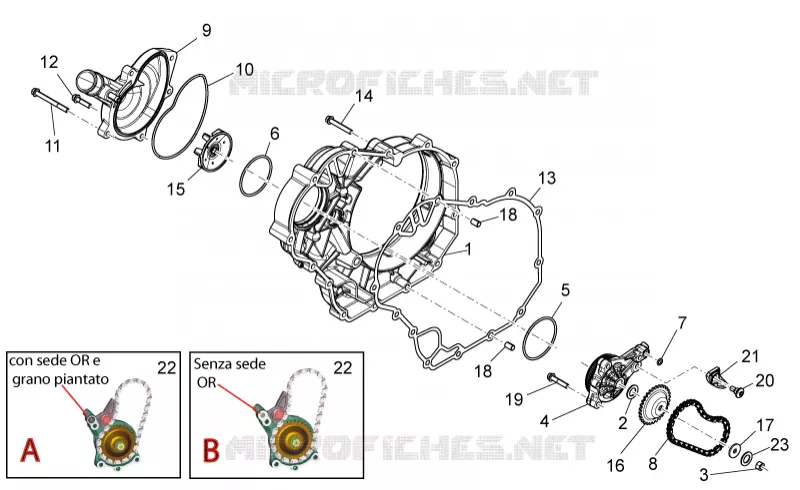

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
