1
Engine displacement
1000
2
Model
RSV4
3
Year
2018
4
Trim
RSV4 1000 RF
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Pad
by
Tank cover
Front wheel
1
7
5
15
14
13
12
11
11
10
9
8
8
6
5
4
3
2
1
Front/rear tyre 120/70-17" M/C (58W)
897596
£446,52 Unit Price incl. VAT
2
Front wheel
894846
Not Available
3
RH front brake disc D.330
2B001135
£342,67 Unit Price incl. VAT
4
LH front brake disc D.330
2B001136
£342,67 Unit Price incl. VAT
5
Bearing 25x47x12
AP8110094
£6,56 Unit Price incl. VAT
6
Internal spacer
AP8125843
£57,85 Unit Price incl. VAT
7
Front wheel spindle
85263R
Not Available
8
Gasket ring 30x47x7
AP8125841
£1,96 Unit Price incl. VAT
9
Front RH whe.ou.spacer
AP8125728
£15,91 Unit Price incl. VAT
10
Wheel spindle nut
AP8152335
£10,94 Unit Price incl. VAT
11
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
12
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
13
Tubeless tyre valve 90°
AP8104728
£18,78 Unit Price incl. VAT
14
Snap ring d47
AP8125842
£0,66 Unit Price incl. VAT
15
Phonic wheel
2B003169
£45,77 Unit Price incl. VAT

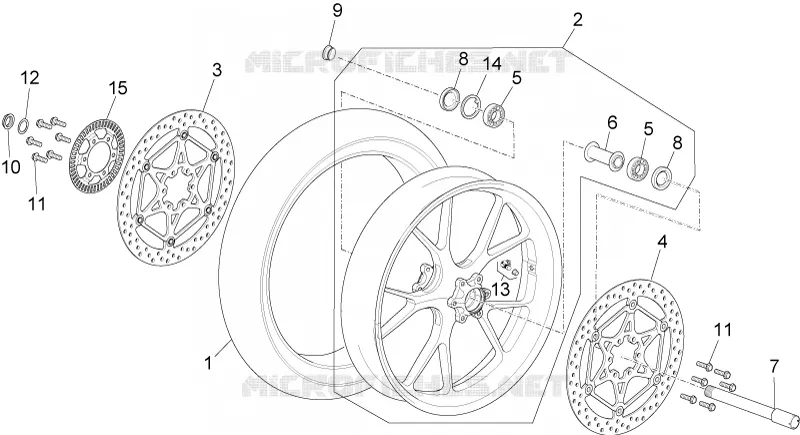

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
