Engine displacement
50
2
Model
RS4
3
Year
2018
4
Trim
RS4 50 2T E4
5
Parts Catalog
Gear box - Gear assembly
6
Parts Diagram
Parts Catalog
Front wheel
by
Engine-Completing part-Lever
Gear box - Gear assembly
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Primary gear shaft assy. 6 v.ta'
847027
£463,26 Unit Price incl. VAT
2
Roller cage
847544
£42,13 Unit Price incl. VAT
3
Gear position sensor
880095
Not Available
4
Plate
847021
£7,25 Unit Price incl. VAT
5
M5x10 countersunk head screw
1A003116
£1,27 Unit Price incl. VAT
6
Secondary shaft cpl. 6 v.ta'
847028
£608,86 Unit Price incl. VAT
7
Gear 1A Z=34
847153
£98,47 Unit Price incl. VAT
8
Gear 2A Z=30
847157
£223,20 Unit Price incl. VAT
9
Gear 3A Z=27
847155
£223,14 Unit Price incl. VAT
10
Gear 4A Z=24
847156
£192,24 Unit Price incl. VAT
11
Washer
847549
£4,28 Unit Price incl. VAT
12
Roller cage
847211
£13,58 Unit Price incl. VAT
13
Shim washer
871708
Not Available
14
Safety washer
847542
£10,03 Unit Price incl. VAT
15
Washer1x16x23.5
847548
£2,33 Unit Price incl. VAT
16
Washer 1x18x23
847541
£2,44 Unit Price incl. VAT
17
Shim washer 17,1x25x0,8
847546
£5,99 Unit Price incl. VAT
18
Washer 1.2x17x28
847545
£6,67 Unit Price incl. VAT
19
Oil seal
847019
£6,05 Unit Price incl. VAT
20
Bearing
847209
£11,15 Unit Price incl. VAT
21
Gear 5A Z=23
847154
£156,40 Unit Price incl. VAT
22
Pinion Z=11
86177R
£29,11 Unit Price incl. VAT
23
Plate
00H02800421
£7,86 Unit Price incl. VAT
24
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
25
Safety washer
AP8150535
£1,27 Unit Price incl. VAT
26
Fork
83073R
£115,01 Unit Price incl. VAT
27
Fork guide pin w/shank
847030
£28,02 Unit Price incl. VAT
28
Bush
847547
£29,78 Unit Price incl. VAT
29
Gear 6A Z=22
847158
£203,36 Unit Price incl. VAT
30
Secondary gear shaft
847159
£422,59 Unit Price incl. VAT
31
Fork guide pin w/shank
847029
£27,13 Unit Price incl. VAT
32
Fork
83072R
£115,01 Unit Price incl. VAT

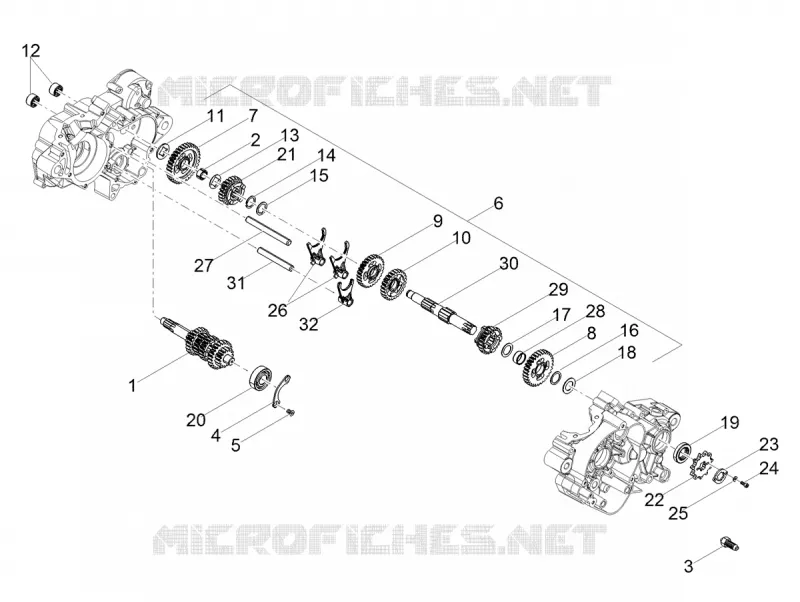

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
