1
Engine displacement
900
2
Model
SHIVER
3
Year
2017
4
Trim
Shiver 900 ABS Euro 4
5
Parts Catalog
Gear box / Selector / Shift cam
6
Parts Diagram
Parts Catalog
Drive shaft
by
Gear box - Gear assembly

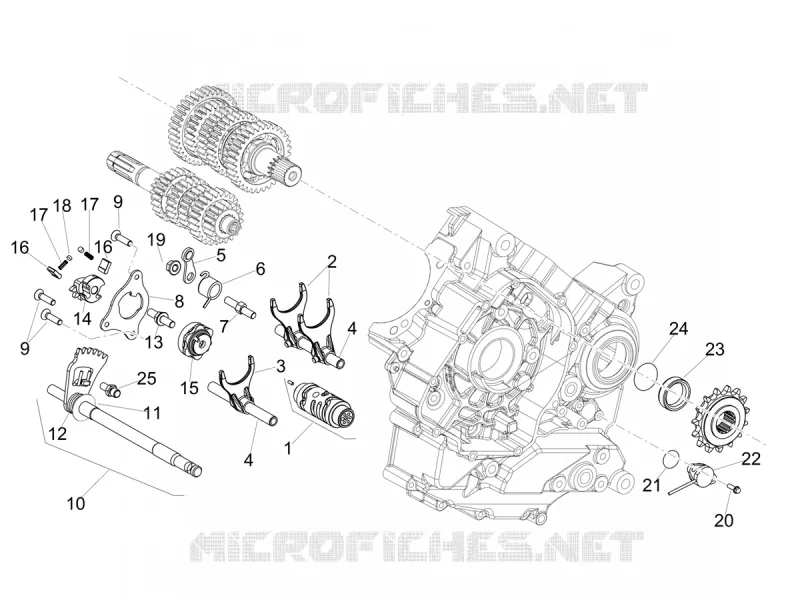

Gear box / Selector / Shift cam
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
1
Shift cam cpl.
1A004527
£162,89 Unit Price incl. VAT
2
Fork
849360
£54,59 Unit Price incl. VAT
3
Fork output
874599
£53,88 Unit Price incl. VAT
4
Fork shaft
873772
£23,15 Unit Price incl. VAT
5
Index assy. lever
872154
Not Available
6
Gear stop lever spring
B013306
£6,85 Unit Price incl. VAT
7
Threaded pin
B013928
£14,62 Unit Price incl. VAT
8
Selector lock plate
871649
£18,92 Unit Price incl. VAT
9
screw
878867
£2,48 Unit Price incl. VAT
10
Selector shaft
B014437
Not Available
11
Flat washer 14x30x1
971718
£1,43 Unit Price incl. VAT
12
Spring
B014440
£7,88 Unit Price incl. VAT
13
Threaded pin M8x1,25
878870
£32,76 Unit Price incl. VAT
14
Shift cam plate
872560
£67,60 Unit Price incl. VAT
15
Selector drum
B017809
£59,42 Unit Price incl. VAT
16
Lever
AP9150069
£8,29 Unit Price incl. VAT
17
Spring
AP9150064
£13,60 Unit Price incl. VAT
18
Spring pillar
AP9150070
£16,34 Unit Price incl. VAT
19
Self locking nut
597565
£1,00 Unit Price incl. VAT
20
Torx convex big end screw
B016796
Not Available
21
Packing
877441
£4,31 Unit Price incl. VAT
22
Gear position sensor
857265
£157,74 Unit Price incl. VAT
23
Spacer
974558
£31,90 Unit Price incl. VAT
24
Gasket OR
871901
£1,03 Unit Price incl. VAT
25
Selector lock
974130
£28,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
