1
Engine displacement
900
2
Model
SHIVER
3
Year
2017
4
Trim
Shiver 900 ABS Euro 4
5
Parts Catalog
Water pump
6
Parts Diagram
Parts Catalog
Lubrication
by
Clutch cover

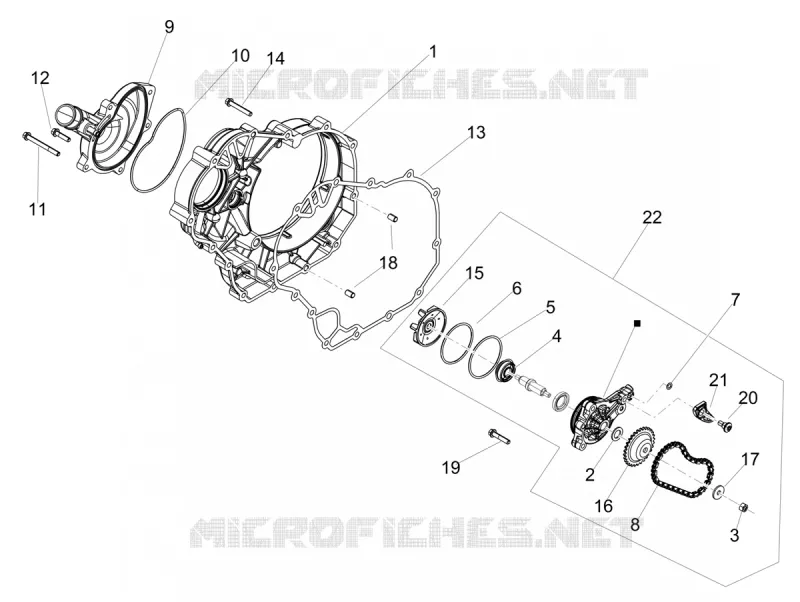

Water pump
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Clutch side cover
1A0084975
£160,82 Unit Price incl. VAT
2
Shim washer
878734
£4,72 Unit Price incl. VAT
3
Nut M6
876529
£4,90 Unit Price incl. VAT
4
Gasket ring
82991R
£27,28 Unit Price incl. VAT
5
O-ring
878115
£10,18 Unit Price incl. VAT
6
O-ring
876538
£7,60 Unit Price incl. VAT
7
O-ring
224035
£0,83 Unit Price incl. VAT
8
Chain 52
846624
£51,41 Unit Price incl. VAT
9
Water pump cover
1A0084955
£72,11 Unit Price incl. VAT
10
Water pump body seal
B013527
£9,54 Unit Price incl. VAT
11
Screw w/ flange
877850
£2,36 Unit Price incl. VAT
12
Screw w/ flange
874549
£2,48 Unit Price incl. VAT
13
Water pump cover gasket
877069
£18,61 Unit Price incl. VAT
14
Screw w/ flange
B016210
£2,36 Unit Price incl. VAT
15
Rotor
880646
£18,17 Unit Price incl. VAT
16
Chain ring
875814
£11,45 Unit Price incl. VAT
17
Conical washer
834951
£1,16 Unit Price incl. VAT
18
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
19
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
20
Flanged hexagon screw
1A003153
£0,62 Unit Price incl. VAT
21
water pump slider
880798
£6,42 Unit Price incl. VAT
22
Water pump assy
B014258
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
