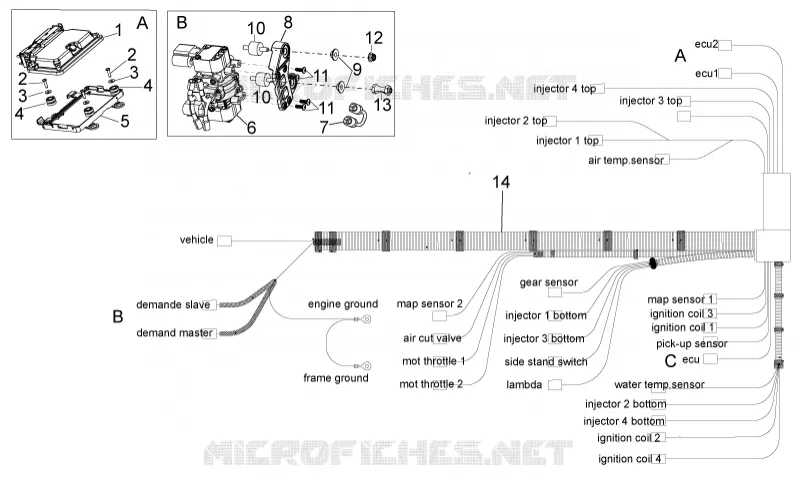

Electrical system III
2
2
1
10
10
9
8
7
6
5
4
4
3
3
14
13
12
11
11
1
Electronic injection device
CM266602
£578,22 Unit Price incl. VAT
2
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
3
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
4
Rubber spacer
AP8220150
£3,13 Unit Price incl. VAT
5
Maintenance
858882
£16,07 Unit Price incl. VAT
6
Accelerator position sensor
B044414
£928,16 Unit Price incl. VAT
7
Rubber spacer
854811
£3,79 Unit Price incl. VAT
8
Support bracket
858883
£10,82 Unit Price incl. VAT
9
T bush *
AP8221145
£9,78 Unit Price incl. VAT
10
Silent-block
AP8144061
£11,28 Unit Price incl. VAT
11
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
12
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
13
Spacer
893255
£13,43 Unit Price incl. VAT
14
Engine wiring
896892
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
