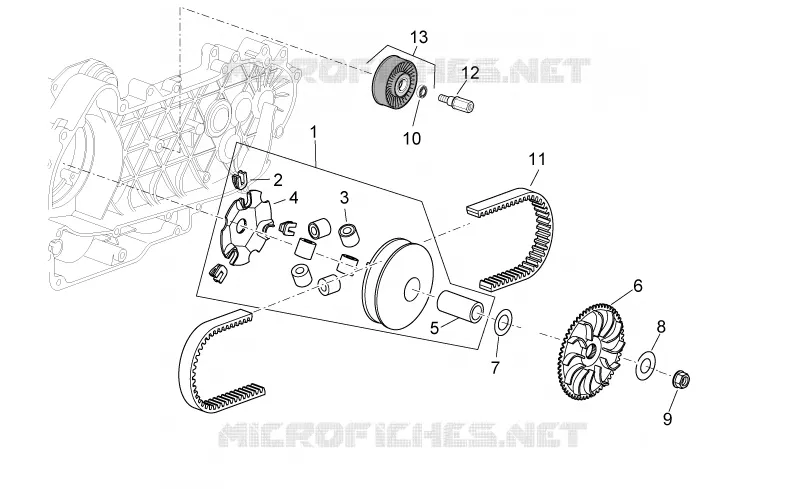

Variator assembly
12
5
4
3
2
1
11
10
9
6
7
8
13
1
Complete roller housing
CM144407
£94,16 Unit Price incl. VAT
1
Complete roller housing
CM144408
Not Available
2
Sliding block
843028
£2,59 Unit Price incl. VAT
3
Pin roller-set
4857135
£17,40 Unit Price incl. VAT
3
Pin roller
849480
£2,99 Unit Price incl. VAT
4
Roller contrast
485710
£14,02 Unit Price incl. VAT
5
Spacer
483889
£35,44 Unit Price incl. VAT
6
Fixed pulley
840193
£41,65 Unit Price incl. VAT
7
Plain washer 17x32x1
434885
£1,91 Unit Price incl. VAT
8
Belleville spring 0,5x35x17
841379
Not Available
9
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT
10
Bearing
82577R
£12,52 Unit Price incl. VAT
11
V-belt
841851
Not Available
12
Special screw
829326
£5,89 Unit Price incl. VAT
13
Toothed pulley
833989
£67,72 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
