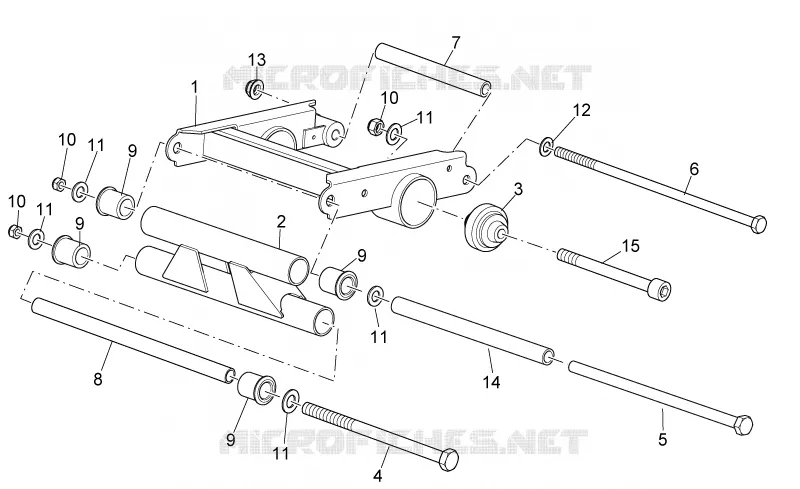

Connecting rod
14
13
12
11
11
11
11
11
10
10
10
9
9
9
15
9
2
1
8
7
6
5
3
4
1
Engine connecting element
AP8235181
Not Available
2
Frame coupling rod
AP8235185
£114,16 Unit Price incl. VAT
3
Silent-block
AP8161155
£28,99 Unit Price incl. VAT
4
Frame pivot pin
AP8121191
£17,66 Unit Price incl. VAT
5
Connecting rod pivot pin
AP8161019
£37,67 Unit Price incl. VAT
6
Engine pivot pin
AP8121192
£14,64 Unit Price incl. VAT
7
Spacer
AP8121628
£28,30 Unit Price incl. VAT
8
Rod bush
AP8121190
Not Available
9
Resin bush
AP8235186
£3,78 Unit Price incl. VAT
10
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
11
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
12
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
13
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
14
Rod bush
AP8161016
£48,10 Unit Price incl. VAT
15
Hex socket screw M12x90
AP8150554
£3,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
