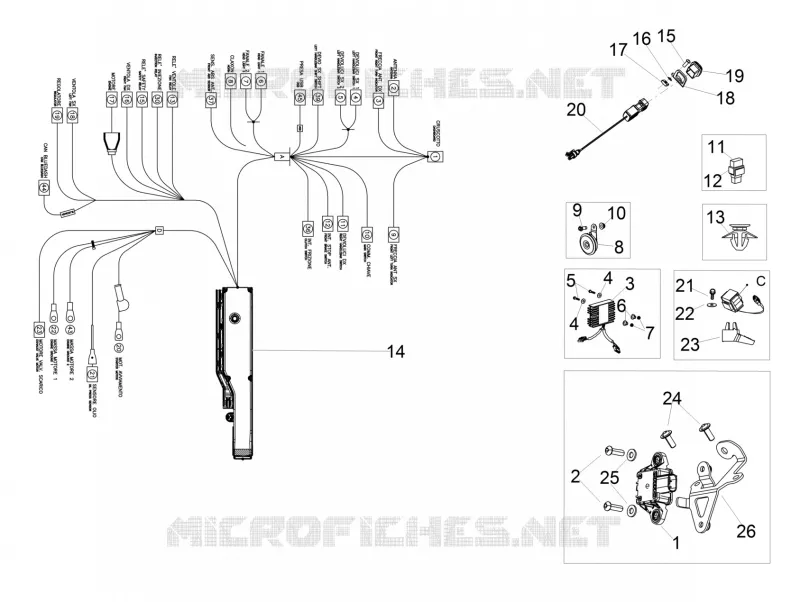

Front electrical system
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
7
8
26
6
5
4
4
3
2
1
1
Missing description
2D000385
Not Available
2
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
3
Voltage regulator
B043488
£322,10 Unit Price incl. VAT
4
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
5
Hex socket screw M6x30
AP8152128
£1,88 Unit Price incl. VAT
6
T bush *
AP8121075
£1,96 Unit Price incl. VAT
7
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
8
Horn
890979
£71,26 Unit Price incl. VAT
9
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
10
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
11
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
12
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
13
Instrument support
890760
£16,21 Unit Price incl. VAT
14
Main wiring harness
2D000302
£725,51 Unit Price incl. VAT
15
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
16
Curved spring washer *
AP8150182
£2,48 Unit Price incl. VAT
17
Square nut M6
2B002443
£1,51 Unit Price incl. VAT
18
Socket support bracket
2B002459
£36,34 Unit Price incl. VAT
19
Fairlead
1B001591
£3,90 Unit Price incl. VAT
20
USB port
1D001378R
Not Available
21
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
22
Bush
AP8121991
£3,60 Unit Price incl. VAT
23
Sensor support
858916
£10,82 Unit Price incl. VAT
24
Screw w/ flange M6x12
GU98210612
£8,05 Unit Price incl. VAT
26
Support bracket
2B002985
£22,93 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
