1
Engine displacement
150
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo
5
Parts Catalog
Speed variator w/ clutch
6
Parts Diagram
Parts Catalog
Primary transm.
by
Front body - Front fairing

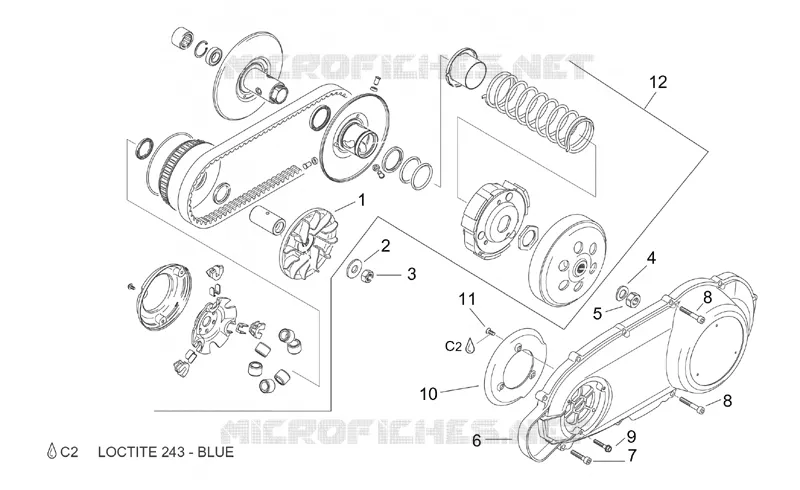

Speed variator w/ clutch
1
2
3
4
5
6
7
8
8
9
10
11
12
1
Fixed pulley
AP0280092
£179,90 Unit Price incl. VAT
2
Washer 12,2x32x2
AP0227180
£10,10 Unit Price incl. VAT
3
Nut M12x1
AP0242515
Not Available
4
Break washer A12
AP0945754
Not Available
5
Nut M12x1
AP0242515
Not Available
6
Variator cover
AP0211518
Not Available
6
Variator cover
AP0211517
Not Available
7
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
8
Hex socket screw M6x40
AP0241816
Not Available
9
Screw w/ flange
AP0241275
Not Available
10
Air deflector
AP0222525
Not Available
11
screw
AP0940315
Not Available
12
Comp variator
AP0295332
Not Available
12
Comp variator
AP0295331
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
