Parts Catalog
RH Semi-crankcase
6
Parts Diagram
Parts Catalog
Carburettor II
by
Central stand
RH Semi-crankcase
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
Bearing 6003-2RS
AP0232621
Not Available
2
Oil pump assy.
AP0295630
Not Available
3
Screw w/ flange
AP0241275
Not Available
4
Bearing screw M6
AP0240940
Not Available
5
Cover M16x1,5
AP0240235
£20,82 Unit Price incl. VAT
6
Gasket ring 16x22
AP0430622
Not Available
7
Oil strainer
AP0256490
£17,51 Unit Price incl. VAT
8
Magnetic drain plug M12x1,5
AP0241782
Not Available
9
Gasket ring 12x18
AP0250640
Not Available
10
Oil pressure switch
AP0956166
Not Available
11
Water pump shaft assy.
AP0220356
£100,25 Unit Price incl. VAT
12
Oil seal 10x26x7
AP0230195
£27,07 Unit Price incl. VAT
13
Thrust washer 10,1/17/1
AP0827590
Not Available
14
Pin
AP0232430
Not Available
15
Pump gear
AP0634430
£59,12 Unit Price incl. VAT
16
Circlip 8x0,8
AP0245570
Not Available
17
Water pump assy
AP0293419
Not Available
18
O-ring
AP0430900
£7,48 Unit Price incl. VAT
19
Washer 8,1
AP0827405
Not Available

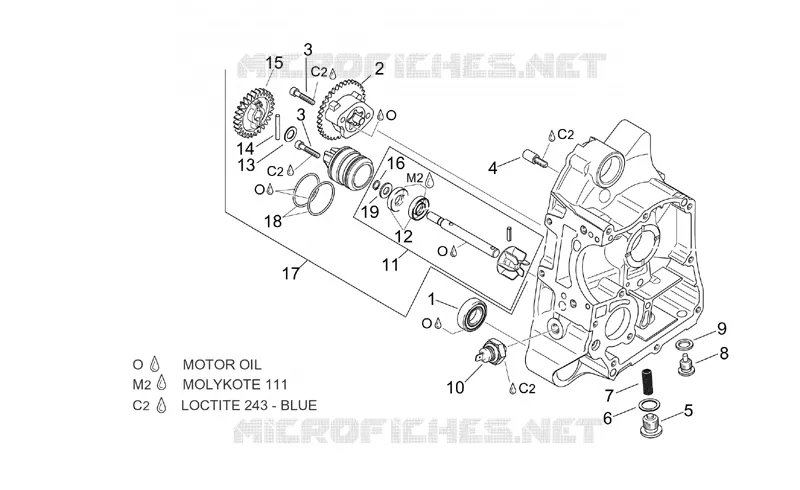

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
