1
Engine displacement
150
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo
5
Parts Catalog
Rear body - Rear fairing
6

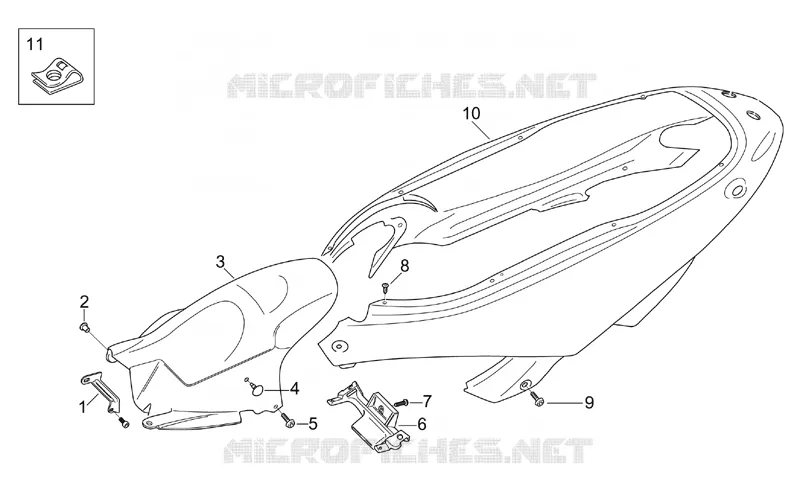

Parts Diagram
Parts Catalog
Front body - Front fairing
by
Rear body - Plate holder
Rear body - Rear fairing
1
2
3
4
5
6
7
8
9
10
11
1
Rear black mudguard support
AP8134362
Not Available
2
T bush *
AP8121075
£1,96 Unit Price incl. VAT
3
Rear mudguard, grey
AP8126708
Not Available
3
Rear mudguard, grey
AP8126886
Not Available
4
Rubber spacer
AP8120001
£5,32 Unit Price incl. VAT
5
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
6
Rear fairing support
AP8138718
Not Available
7
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
8
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
9
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
10
Rear fairing, m.cyan
AP8148201
Not Available
10
Rear fairing, s. blue
AP8149815
Not Available
10
Rear fairing, p.grey
AP8149740
Not Available
10
Rear fairing, black
AP8158002
Not Available
10
Rear fairing, s.yellow
AP8148898
Not Available
10
Rear fairing, s.black
AP8148102
Not Available
10
Rear fairing, ch.blue
AP8148884
Not Available
10
Rear fairing, m. red
AP8148320
Not Available
10
Rear fairing, p.grey
AP8148377
Not Available
10
Rear fairing, hot red+decal
AP8149629
Not Available
10
Rear fairing, ice green
AP8148995
Not Available
10
Rear fairing, b.yellow
AP8148369
Not Available
10
Rear fairing, ch.blue
AP8149746
Not Available
11
Clip M6
AP8102376
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
