1
Engine displacement
1000
2
Model
RSV
3
Year
2007
4
Trim
RSV 1000
5
Parts Catalog
Front body - Front fairing
6
Parts Diagram
Parts Catalog
Front fork III
by
Crankshaft I

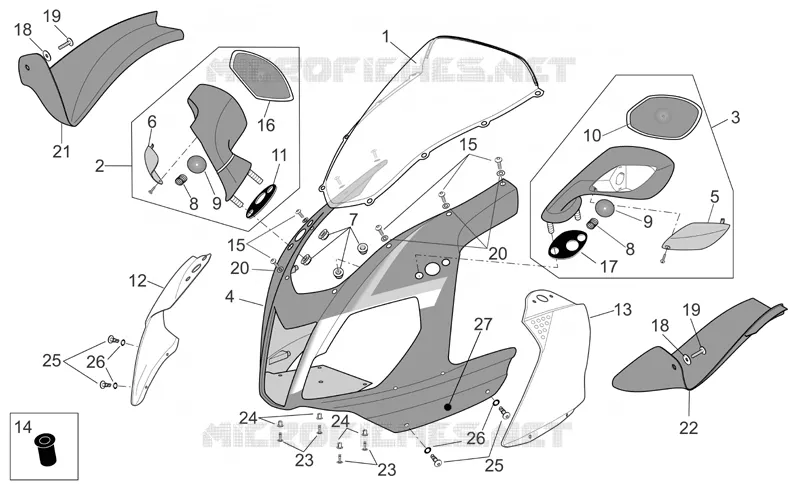

Front body - Front fairing
27
26
26
25
25
24
24
23
23
22
21
20
20
19
19
18
18
17
16
15
15
14
13
12
11
10
9
9
8
8
7
6
5
4
3
2
1
1
Windshield
AP8168785
Not Available
1
Windshield
AP8168981
Not Available
1
Windshield
AP8178272
Not Available
1
Windshield
AP8178273
Not Available
1
Windshield
AP8158662
Not Available
1
Windshield
AP8179264
Not Available
1
Windshield
AP8178938
Not Available
1
Windshield
AP8168929
Not Available
1
Windshield
AP8178271
Not Available
2
RH rearview mirror
AP8104875
Not Available
2
RH rearview mirror
AP8104343
Not Available
2
RH rearview mirror
AP8104860
Not Available
2
RH rearview mirror
AP8104888
Not Available
3
LH rearview mirror
AP8104876
Not Available
3
LH rearview mirror
AP8104889
Not Available
3
LH rearview mirror
AP8104344
£196,85 Unit Price incl. VAT
3
LH rearview mirror
AP8104861
Not Available
4
Front fairing, red
AP8178943
Not Available
4
Front fairing,transp.varn.
AP8178120
Not Available
4
Front fairing, grey
AP8168996
Not Available
4
Front fairing, grey
AP8184334
Not Available
4
Front fairing, black
AP8178016
Not Available
4
Front fairing, black/white
AP8184400
Not Available
4
Front fairing v.lilla
AP8184351
Not Available
4
Front fairing, black
AP8168874
Not Available
4
Front fairing, red
AP8178028
Not Available
4
Front fairing, grey
AP8158661
Not Available
4
Front fairing, silver
AP8178957
Not Available
4
Front fairing, black
AP8184317
Not Available
4
Front fairing, black
AP8184385
Not Available
4
Front fairing, grey
AP8179273
Not Available
4
Front fairing, black
AP8178874
Not Available
4
Front fairing, red
AP8178171
Not Available
4
Front fairing, blue
AP8184680
Not Available
4
Front fairing, white
AP8184700
Not Available
5
LH orange lens
AP8104759
£31,10 Unit Price incl. VAT
5
LH transparent lens
AP8127700
£28,46 Unit Price incl. VAT
6
RH transparent lens
AP8127699
£28,46 Unit Price incl. VAT
6
RH orange lens
AP8104760
£31,10 Unit Price incl. VAT
7
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
7
Nut M6
AP8152466
Not Available
8
Spring
AP8104751
Not Available
9
Cup
AP8104756
Not Available
10
LH rearview mirror
AP8104754
£31,44 Unit Price incl. VAT
11
RH gasket
AP8104758
Not Available
12
RH baffle, black
AP8178110
Not Available
12
RH baffle, carb.
AP8168986
Not Available
12
RH baffle, black
AP8178939
Not Available
12
RH baffle, carb.
AP8178139
Not Available
12
RH baffle, carb.
AP8178756
Not Available
12
RH baffle, black
AP8179274
Not Available
12
RH baffle, grey
AP8178180
Not Available
13
LH baffle, black
AP8179275
Not Available
13
LH baffle, black
AP8178940
Not Available
13
LH baffle, carb.
AP8178755
Not Available
13
LH baffle, grey
AP8178181
Not Available
13
LH baffle, black
AP8178111
Not Available
13
LH baffle, carb.
AP8168987
Not Available
13
LH baffle, carb.
AP8178140
Not Available
14
Rubber w/ insert M4
AP8144564
£2,52 Unit Price incl. VAT
15
Screw M4x14
AP8121184
£1,06 Unit Price incl. VAT
15
Screw M4x12
AP8152469
Not Available
16
RH rearview mirror
AP8104755
£46,57 Unit Price incl. VAT
17
LH gasket
AP8104757
£8,11 Unit Price incl. VAT
18
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
19
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
20
Nylon washer
AP8144565
£1,27 Unit Price incl. VAT
21
Upper RH fairing, carb.
AP8158132
Not Available
21
Upper RH fairing, carb.
AP8178753
Not Available
21
Upper RH fairing
AP8158659
Not Available
22
Upper LH fairing, carb.
AP8178754
Not Available
22
Upper LH fairing
AP8158660
£171,94 Unit Price incl. VAT
22
Upper LH fairing, carb.
AP8158133
Not Available
23
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
24
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
25
screw
AP8121663
Not Available
26
Front dust cover ring
AP8120622
£1,36 Unit Price incl. VAT
27
Decal
853201
£16,28 Unit Price incl. VAT
27
Decal V60
853200
Not Available
27
Decal RSV
AP8166985
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
