1
Engine displacement
1000
2
Model
RSV
3
Year
2005
4
Trim
RSV 1000
5
Parts Catalog
Front body - Fairings I
6
Parts Diagram
Parts Catalog
Rear mudguard
by
Valves pads

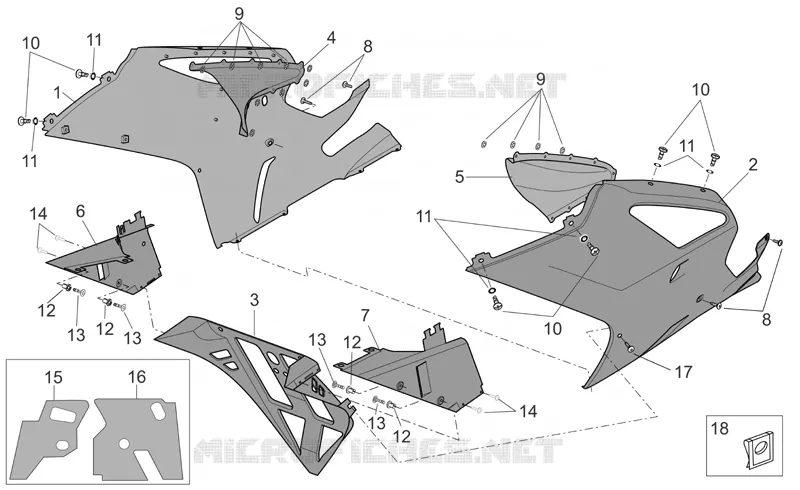

Front body - Fairings I
18
17
16
15
14
14
13
13
13
13
12
12
12
12
11
11
11
11
10
10
10
9
9
8
8
7
6
5
4
3
2
1
1
RH lat.fairing, grey
AP8178029
Not Available
1
RH lateral fairing, transp.
AP8178240
Not Available
1
RH lat.fairing, grey
AP8178004
Not Available
1
RH lat.fairing, black
AP8178177
Not Available
1
RH lat.fairing, black
AP8178904
Not Available
1
RH lat.fairing, grey
AP8158657
Not Available
1
RH lat.fairing, grey
AP8178172
Not Available
1
RH lat.fairing, black
AP8178944
Not Available
1
RH lat.fairing, black
AP8158130
Not Available
1
RH lat.fairing, grey
AP8178958
Not Available
2
LH lat.fairing, grey
AP8178173
Not Available
2
LH lat.fairing, grey
AP8178005
Not Available
2
LH lat.fairing, black
AP8178905
£1 083,90 Unit Price incl. VAT
2
LH lat.fairing, black
AP8178945
Not Available
2
LH lat.fairing, grey
AP8178030
Not Available
2
LH lat.fairing, grey
AP8178959
Not Available
2
LH lat.fairing, grey
AP8158658
Not Available
2
LH lat.fairing, black
AP8158131
Not Available
2
LH lateral fairing, transp.
AP8178241
Not Available
2
LH lat.fairing, black
AP8178178
Not Available
3
Pillar
AP8168982
Not Available
3
Pillar
AP8158128
Not Available
4
RH puller
AP8168611
Not Available
4
RH puller
AP8158910
£25,06 Unit Price incl. VAT
4
RH puller, carb.
AP8178757
Not Available
5
LH puller
AP8158911
Not Available
5
LH puller, carb.
AP8178758
£482,54 Unit Price incl. VAT
5
LH puller
AP8168612
Not Available
6
RH internal fairing
AP8158126
Not Available
7
LH internal fairing
AP8158127
Not Available
8
Screw w/ flange M5x12
AP8152302
Not Available
8
Screw M6x15
AP8152460
Not Available
9
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
10
screw
AP8121663
Not Available
10
Fixing pin
AP8161015
Not Available
11
Front dust cover ring
AP8120622
£1,36 Unit Price incl. VAT
12
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
13
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
14
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
15
Acoustic insulation panel, RH
AP8117189
Not Available
16
Acoustic insulation panel, LH
AP8117190
£48,79 Unit Price incl. VAT
17
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
18
Special clip
AP8101985
£3,97 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
