1
Engine displacement
1000
2
Model
RSV
3
Year
2006
4
Trim
RSV 1000
5
Parts Catalog
Foot rests
6

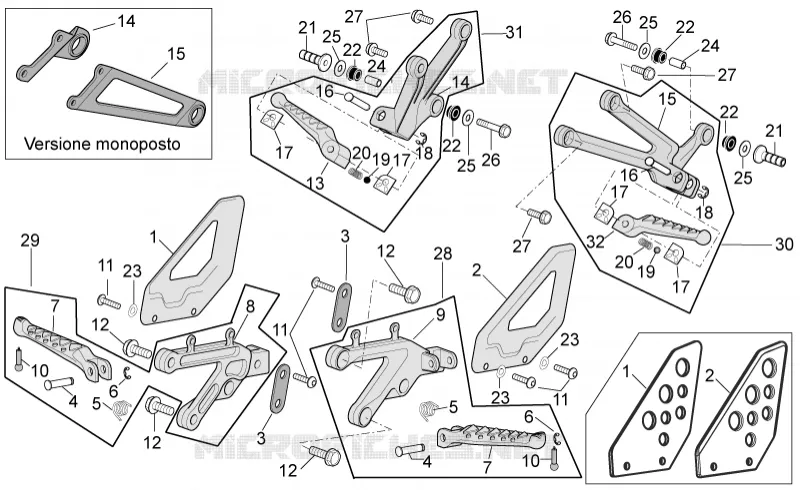

Parts Diagram
Parts Catalog
Plate set and handbooks
by
Headlight
Foot rests
32
31
30
29
28
27
27
27
26
26
25
25
25
25
24
24
23
23
23
22
22
22
22
21
21
20
20
19
19
18
18
17
17
17
17
16
16
15
15
14
14
13
12
12
12
12
11
11
11
10
10
9
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
1
RH front footrest guard
AP8146802
Not Available
1
RH front footrest guard
AP8179259
Not Available
1
RH front footrest guard
AP8146503
£50,12 Unit Price incl. VAT
2
LH front footrest guard
AP8179260
Not Available
2
LH front footrest guard
AP8146504
£50,12 Unit Price incl. VAT
2
LH front footrest guard
AP8146803
Not Available
3
Fairing fixing plate
AP8134541
£12,73 Unit Price incl. VAT
4
Footrest pin
AP8121566
£11,32 Unit Price incl. VAT
5
Footrest return spring
AP8121224
£4,21 Unit Price incl. VAT
6
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
7
Front footrest, pair
AP8146862
Not Available
8
RH front footrest bracket
AP8146501
£54,13 Unit Price incl. VAT
9
LH front footrest bracket
AP8146502
Not Available
10
Footrest pin
AP8134955
£22,21 Unit Price incl. VAT
11
Hex socket screw M6x12
AP8150537
£1,27 Unit Price incl. VAT
11
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
11
Screw M6x10
AP8152459
Not Available
12
Screw M8x30
AP8152448
Not Available
12
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
12
Screw
AP8150540
£10,54 Unit Price incl. VAT
13
Rear footrest, RH
AP8146616
£134,70 Unit Price incl. VAT
14
RH footrest support
AP8146566
£288,70 Unit Price incl. VAT
14
RH support
AP8134786
Not Available
15
LH support
AP8134830
£27,06 Unit Price incl. VAT
15
LH footrest support
AP8146567
Not Available
16
Footrest pin
AP8134829
£6,28 Unit Price incl. VAT
17
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
18
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
19
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
20
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
21
Silencer protection
AP8158984
£24,43 Unit Price incl. VAT
22
Rubber spacer
AP8144558
£4,92 Unit Price incl. VAT
23
Spring washer 6,4x11x0,5*
AP8150429
Not Available
24
Spacer bush
AP8121455
£4,31 Unit Price incl. VAT
25
Washer
AP8150018
£1,88 Unit Price incl. VAT
26
Screw M8x40
AP8152450
Not Available
26
Screw w/ flange
AP8152291
£1,94 Unit Price incl. VAT
27
Screw M8x20
AP8152447
Not Available
27
Screw M8x25 INOX
AP8152486
£7,33 Unit Price incl. VAT
27
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
28
LH front footrest bracket
AP8154069
£64,73 Unit Price incl. VAT
29
RH front footrest bracket
AP8154070
£63,46 Unit Price incl. VAT
30
LH footrest support
AP8154071
£89,44 Unit Price incl. VAT
31
RH footrest support
AP8154072
£77,68 Unit Price incl. VAT
32
Rear footrest, LH
AP8146617
£134,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
