1
Engine displacement
125
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo
5
Parts Catalog
Rear body - Plate holder
6
Parts Diagram
Parts Catalog
Rear body - Rear fairing
by
Engine

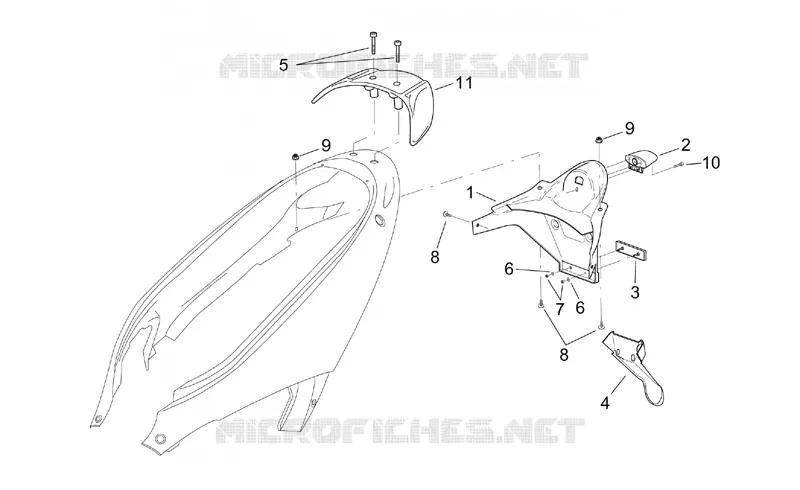

Rear body - Plate holder
1
2
3
4
5
6
6
7
8
8
9
9
10
11
1
Number plate holder, grey
AP8149611
Not Available
1
Number plate holder, grey
AP8126707
Not Available
2
Number-plate light
AP8124367
Not Available
3
Rear reflector
AP8112916
£12,35 Unit Price incl. VAT
4
Rear splash guard, grey
AP8126885
£30,59 Unit Price incl. VAT
4
Rear splash guard, grey
AP8126713
Not Available
5
Hex socket screw M8x40
AP8150171
Not Available
6
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
7
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
8
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
9
Self-locking nut M5
AP8152306
Not Available
10
Self-tapping screw M4x12
AP8150460
£1,43 Unit Price incl. VAT
11
Pillion grab bar, m.cyan
AP8148119
Not Available
11
Pillion grab bar, p.grey
AP8139650
Not Available
11
Pillion grab bar, b.yellow
AP8148367
Not Available
11
Pillion grab bar, grey
AP8149340
Not Available
11
Pillion grab bar, c.blue
AP8148881
Not Available
11
Pillion grab bar, grey
AP8149625
Not Available
11
Pillion grab bar, i.green
AP8148992
Not Available
11
Pillion grab bar, m.red
AP8148312
Not Available
11
Pillion grab bar, s.black
AP8148094
Not Available
11
Pillion grab bar, s.yellow
AP8148895
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
