1
Engine displacement
1000
2
Model
RSV
3
Year
2007
4
Trim
RSV 1000
5
Parts Catalog

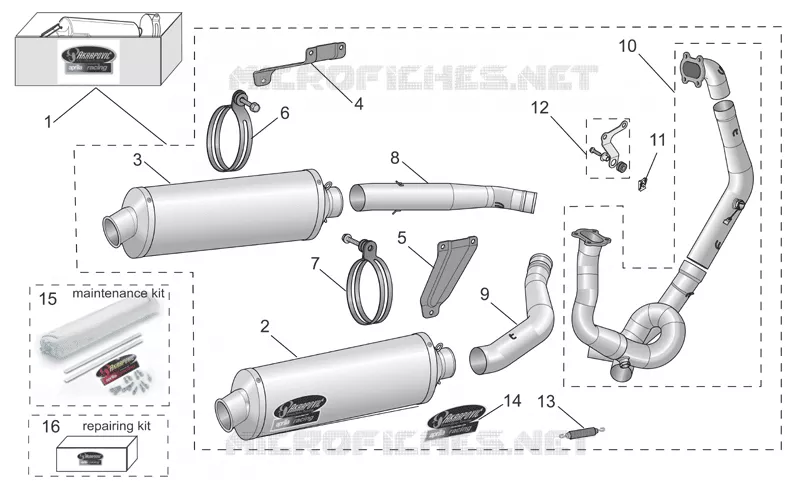

Acc. - Performance parts EVO
6
Parts Diagram
Parts Catalog
Air box
by
Acc. - Mechanics anti-theft
Acc. - Performance parts EVO
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Exhaust kit assy Akra.EVO6
AP8797232
Not Available
2
RH silencer Titan
AP8797233
Not Available
3
LH silencer Titan
AP8797234
Not Available
4
LH clamp Carb.
AP8796790
Not Available
5
RH clamp Carb.
AP8796791
Not Available
6
LH manifold pipe Carb.
AP8797235
Not Available
7
RH silencer support clamp Carb.
AP8797236
Not Available
8
RH manifold pipe Titan
AP8797237
Not Available
9
LH manifold pipe Titan
AP8797238
Not Available
10
Central manifold pipe
AP8797239
Not Available
11
Collector set fixing nut
AP8797240
Not Available
12
Cpl. Exhaust Fix kit
AP8797241
Not Available
13
Exhaust pipes spring
AP8796519
Not Available
14
Sticker
AP8797215
Not Available
15
Silencer revision kit
AP8797242
Not Available
16
Silencer Repairing kit
AP8797243
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
