1
Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro ABS
5
Parts Catalog
Clutch pump
6
Parts Diagram
Parts Catalog
USA decals
by
Dashboard

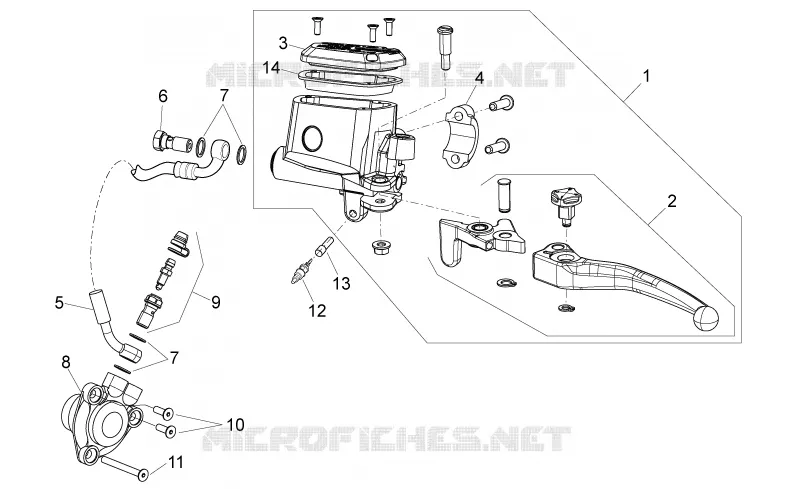

Clutch pump
14
13
12
11
10
9
8
7
7
6
5
4
3
2
1
1
Clutch pump
851645
£238,75 Unit Price incl. VAT
2
Clutch lever
856054
Not Available
3
Cover
856055
Not Available
4
U-bolt
856050
£9,41 Unit Price incl. VAT
5
Clutch pipe
859936
Not Available
6
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
7
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
8
Clutch command cylinder
873115
Not Available
9
Bleeder kit
AP8133945
£27,12 Unit Price incl. VAT
10
Screw
874037
£1,27 Unit Price incl. VAT
11
Screw
873268
£4,01 Unit Price incl. VAT
12
stop Button
AP8127305
Not Available
13
Rubber spacer *
AP8220135
£6,46 Unit Price incl. VAT
14
Diaphragm
858424
£54,78 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
