Parts Catalog

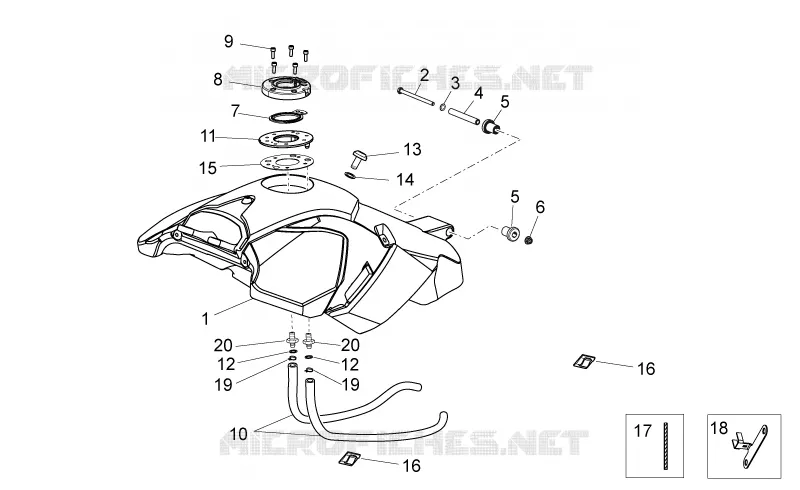

Fuel tank
6
Parts Diagram
Parts Catalog
Rear brake system
by
Rear body III
Fuel tank
20
20
19
19
18
17
16
16
15
14
13
12
12
11
10
9
8
7
6
5
5
4
3
2
1
1
Fuel tank
890847
Not Available
1
Fuel tank
890423
Not Available
1
Fuel tank
894921
Not Available
2
Hex screw M6x90
AP8150459
£4,90 Unit Price incl. VAT
3
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
4
Fuel tank bush
AP8134419
£12,65 Unit Price incl. VAT
5
Rubber spacer
AP8123934
£4,75 Unit Price incl. VAT
6
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
7
Fuel tank gasket
856846
£11,57 Unit Price incl. VAT
7
Fuel tank gasket
890755
£33,77 Unit Price incl. VAT
8
Ring nut fuel filler cap
860237
£42,96 Unit Price incl. VAT
9
Hex socket screw M5x12
895709
£1,27 Unit Price incl. VAT
9
Hex socket screw M5x16
AP8150454
£2,48 Unit Price incl. VAT
10
Fuel pipe 5,5x10
AP8120952
Not Available
10
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
11
Fuel tank flange
860236
£18,54 Unit Price incl. VAT
12
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT
13
Fixing pin
AP8161127
£13,56 Unit Price incl. VAT
14
Washer 5x20x1,5
AP8150255
£0,98 Unit Price incl. VAT
15
Fuel tank gasket
890195
£13,96 Unit Price incl. VAT
16
Wiring clip
AP8120581
£2,20 Unit Price incl. VAT
17
Biadhesive
860447
£12,77 Unit Price incl. VAT
18
Plate
860986
£14,18 Unit Price incl. VAT
19
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
20
Hose holder union
AP8102503
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
