1
Engine displacement
150
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo
5
Parts Catalog

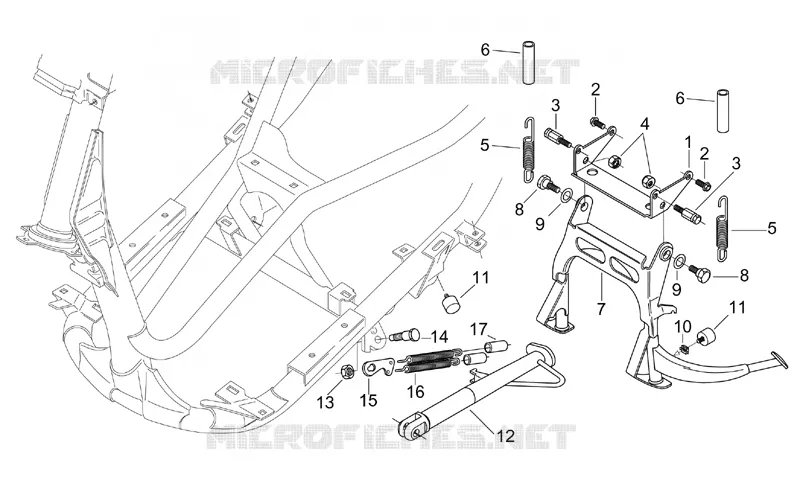

Central stand
6
Parts Diagram
Parts Catalog
RH Semi-crankcase
by
Front body - Shield
Central stand
1
2
2
3
3
4
5
5
6
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
1
Central stand plate
AP8134321
£266,04 Unit Price incl. VAT
2
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
3
Spring coupling screw
AP8121937
£10,37 Unit Price incl. VAT
4
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
5
Lateral stand spring
AP8221204
£10,78 Unit Price incl. VAT
6
Central stand spring prot.
AP8120855
£4,86 Unit Price incl. VAT
7
Central stand
AP8146051
Not Available
7
Central stand
AP8146277
£192,64 Unit Price incl. VAT
8
Central stand fixing screw
AP8121932
£14,22 Unit Price incl. VAT
9
Belleville spring
AP8150466
£1,21 Unit Price incl. VAT
10
Nut M6
AP8152326
£0,94 Unit Price incl. VAT
11
Stand end stop
AP8144030
£13,58 Unit Price incl. VAT
12
Lateral stand
AP8135623
Not Available
13
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
14
Lateral stand screw
AP8152295
Not Available
15
Spring fixing plate
AP8121876
£4,62 Unit Price incl. VAT
16
Coil pull spring
AP8121014
£3,71 Unit Price incl. VAT
17
Rubber spacer
AP8144152
£6,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
