1
Engine displacement
150
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo
5
Parts Catalog

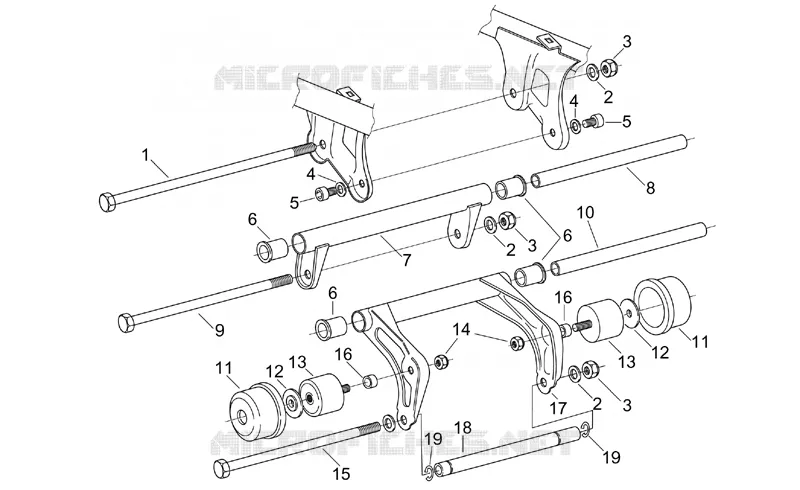

Connecting rod
6
Parts Diagram
Parts Catalog
Acc. - Mechanics anti-theft
by
Decal set
Connecting rod
1
2
2
2
3
3
3
4
4
5
5
6
6
6
7
8
9
10
11
11
12
12
13
13
14
15
16
16
17
18
19
19
1
Engine pivot pin
AP8121930
Not Available
2
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
3
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
4
Curved spring washer *
AP8150210
£1,27 Unit Price incl. VAT
5
Hex socket screw M10x20
AP8150455
Not Available
6
Resin bush
AP8102538
Not Available
7
Frame coupling rod
AP8135850
Not Available
8
Rod bush
AP8121975
Not Available
9
Pin M12x270
AP8221227
£30,02 Unit Price incl. VAT
10
Rod bush
AP8121976
Not Available
11
Stop conn.rod guard
AP8121931
Not Available
12
T bush
AP8121214
Not Available
13
Silent-block, connecting rod
AP8120877
Not Available
14
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
15
Pin M12
AP8221160
£18,62 Unit Price incl. VAT
16
Spacer 10,2x20x4
AP8121218
£18,83 Unit Price incl. VAT
17
Engine connecting element
AP8135622
Not Available
18
Engine pivot pin bush
AP8121954
Not Available
19
Outside circlip D17
AP8206233
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
