Parts Catalog
Transmission
6
Parts Diagram
Parts Catalog
Electrical system II
by
Undersaddle

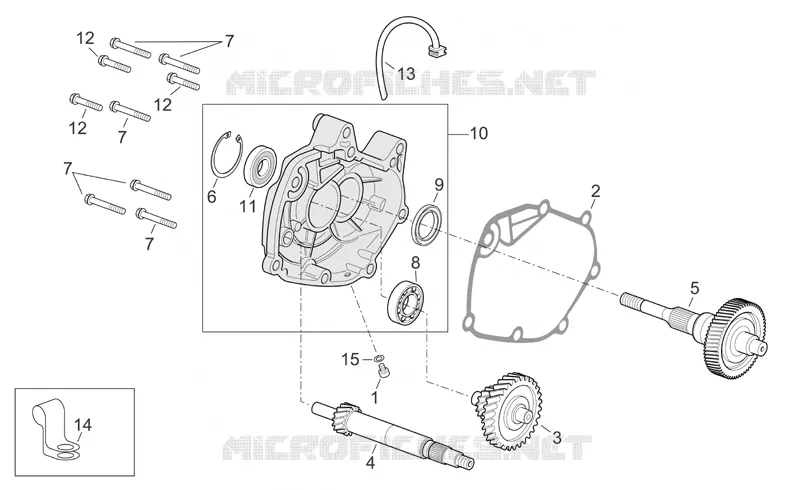

Transmission
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
12
12
13
14
15
1
Transm.oil unload screw
AP8550361
Not Available
2
Gasket
AP8560085
Not Available
3
Transmission shaft
AP8560148
Not Available
4
Driven pulley shaft Z=15
AP8560247
Not Available
5
Rear wheel axis cpl.
AP8560147
Not Available
6
Circlip
AP8560130
Not Available
7
Screw w/ flange
AP8560158
Not Available
8
Bearing D20x52x15
AP8570004
Not Available
9
Oil seal 38x50x7
AP8560125
Not Available
10
Transmission cover cpl.
AP8560005
Not Available
11
Bearing d30x55x13
AP8560126
Not Available
12
Screw w/ flange M8x35
AP8560105
Not Available
13
Breather
AP8560208
Not Available
14
Hose clamp
AP8560022
Not Available
15
Alloy washer
AP8550304
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
