1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2008
4
Trim
Atlantic Sprint
5
Parts Catalog

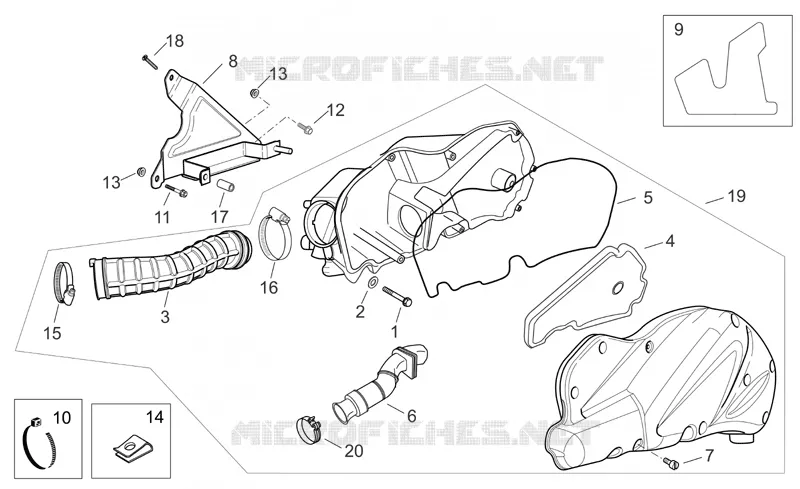

Air box
6
Parts Diagram
Parts Catalog
Acc. - Mechanics anti-theft
by
Oil pump
Air box
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
1
Hex socket screw M6x50
AP8150202
£2,17 Unit Price incl. VAT
2
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
3
Carburettor-air box hose
AP8144696
Not Available
4
Air filter
AP8580172
Not Available
5
Air filter housing seal
AP8580173
Not Available
6
Air intake hose
AP8580178
Not Available
7
Self-tap screw 3x20
AP8580061
Not Available
8
Air box support
AP8146949
Not Available
9
Air box protection
AP8117249
Not Available
10
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
11
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
12
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
13
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
14
Clip M6
AP8102376
Not Available
15
Hose clamp D50-70x8*
AP8102401
£18,49 Unit Price incl. VAT
16
Hose clamp 40-60 h9
AP8121639
Not Available
17
Spacer 6,5x10x19*
AP8121020
£3,78 Unit Price incl. VAT
18
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
19
Air box cpl.
AP8178846
Not Available
20
Hose clamp
AP8580181
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
