1
Engine displacement
125
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo
5
Parts Catalog
Crankshaft - valves
6
Parts Diagram
Parts Catalog
Carburettor III
by
Sealing and lubricating agents

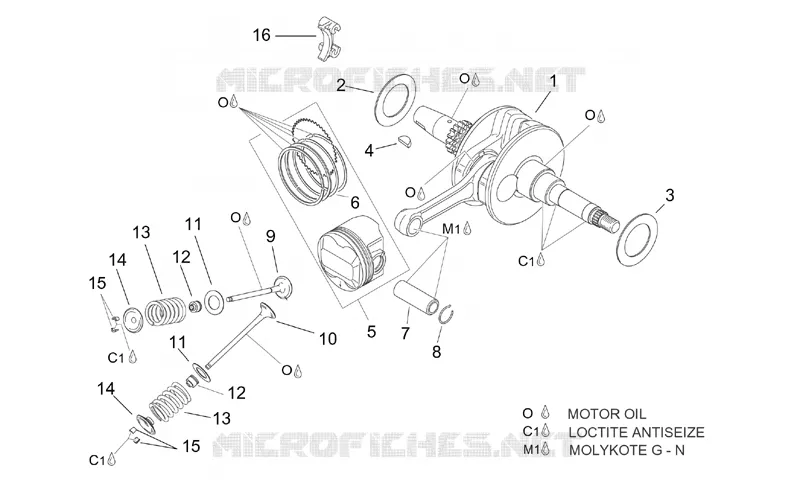

Crankshaft - valves
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
15
16
1
Crankshaft cpl. 50 mm
AP0295594
Not Available
2
Thrust washer 32/50/1
AP0627110
£13,02 Unit Price incl. VAT
3
Thrust washer 32/50/1
AP0627110
£13,02 Unit Price incl. VAT
3
Thrust washer 32/50/1,4
AP0627112
Not Available
3
Thrust washer 32/50/1,2
AP0627111
£13,78 Unit Price incl. VAT
4
Transmission key 4x5
AP0246570
Not Available
5
Piston assy 61,95 mm
AP0295825
Not Available
5
Piston assy 61,97/98 mm
AP0295820
Not Available
5
Piston assy 56,37/38
AP0295585
Not Available
5
Piston assy 56,37/38
AP0295581
Not Available
6
Piston ring set
AP0295589
Not Available
6
Piston ring set
AP0295584
Not Available
6
Piston ring set
AP0296704
Not Available
6
Piston ring set
AP0295824
£132,07 Unit Price incl. VAT
7
Piston pin 15x10x43
AP0216210
Not Available
8
Circlip w. bent end
AP0245805
Not Available
9
Intake valve 20 mm
AP0253880
Not Available
10
Exhaust valve 18 mm
AP0253890
Not Available
11
Thrust washer 12,5/21,5/0,5
AP0227450
Not Available
12
Valve stem seal
AP0650120
£20,35 Unit Price incl. VAT
13
Valve spring
AP0239360
Not Available
14
Valve spring retainer
AP0253900
Not Available
15
Valve half-cone sk 4n
AP0253840
Not Available
16
Chain guide
AP0236350
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
