1
Engine displacement
400
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic Sprint
5
Parts Catalog

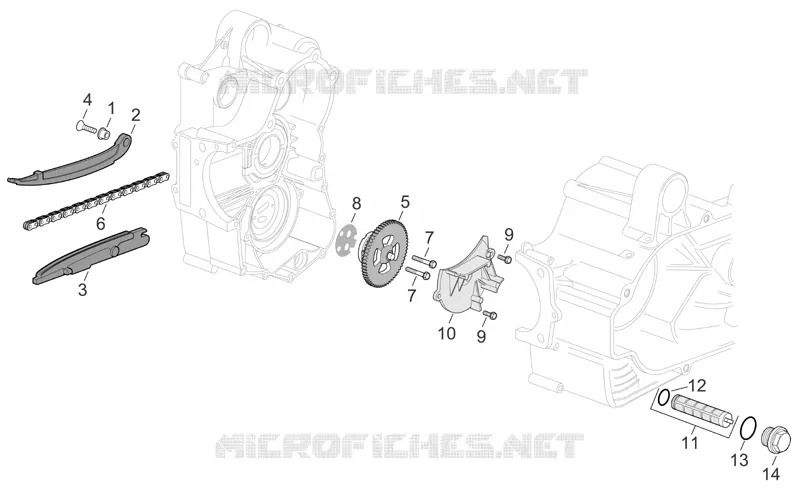

Oil pump
6
Parts Diagram
Parts Catalog
Air box
by
Front wheel
Oil pump
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
1
Spacer
AP8560045
Not Available
2
Chain tensioner rod
AP8560074
Not Available
3
Chain tensioner sliding block
AP8560071
Not Available
4
Screw
AP8560157
Not Available
5
Oil pump assy.
AP8560032
Not Available
6
Camshaft chain
AP8560060
Not Available
7
Screw w/ flange
AP8551029
Not Available
8
Gasket
AP8560087
Not Available
9
Screw w/ flange
AP8560153
Not Available
10
Oil bulhead
AP8560155
Not Available
11
Oil filter
AP8560052
Not Available
12
O-ring
AP8550337
Not Available
13
O-ring
AP8550336
Not Available
14
Oil filter plug
AP8560055
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
