1
Engine displacement
400
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic Sprint
5
Parts Catalog
Pulley assy., driven
6
Parts Diagram
Parts Catalog
Saddle
by
Acc. - Various I

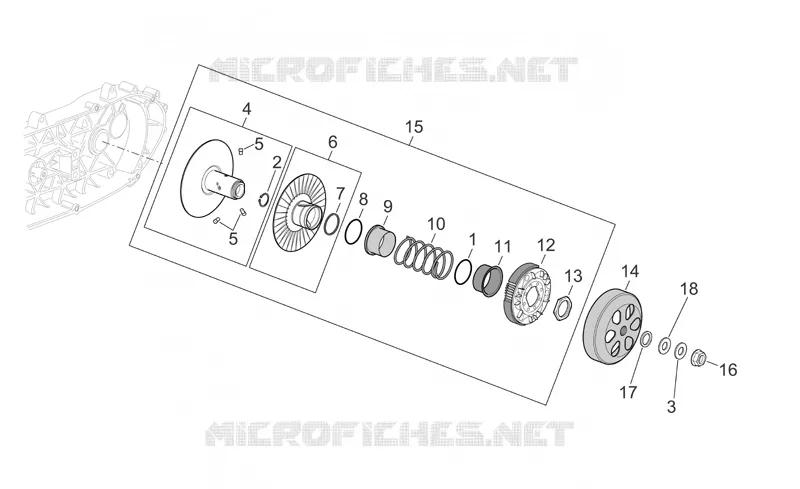

Pulley assy., driven
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
O-ring
AP8560029
Not Available
2
Circlip
AP8560033
Not Available
3
Plain washer
AP8560243
Not Available
4
Sec. fixed sheave, complete
AP8560196
Not Available
5
Guide pin
AP8560109
Not Available
6
Sec. sliding sheave, complete
AP8560197
Not Available
7
Oil seal 50x57x5
AP8560031
Not Available
8
O-ring
AP8560111
Not Available
9
Spring seat
AP8560108
Not Available
10
Spring
AP8560177
Not Available
11
Spring seat
AP8560034
Not Available
12
Centrifugal clutch assy 5M
AP8560246
Not Available
12
Centrifugal clutch assy 5M
848844
Not Available
13
Nut
AP8560035
Not Available
14
Clutch housing, complete
AP8560026
Not Available
15
Secondary pulley
AP8560245
Not Available
15
Secondary pulley
848843
Not Available
16
Nut M14x1,5
AP8560063
Not Available
17
Spacer 26x17x3
AP8560046
Not Available
18
Plain washer
AP8560244
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
