1
Engine displacement
150
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo
5
Parts Catalog
Electrical system II
6
Parts Diagram
Parts Catalog
Transmission
by
Carburettor II
Electrical system II
1
2
3
4
5
6
7
8
8
8
9
10
11
12
12
13
14
15
16
1
Rear wiring+fuses
AP8124407
Not Available
2
Main wiring harness
AP8124672
Not Available
2
Main wiring harness
AP8124632
Not Available
3
Ground-battery lead
AP8124447
Not Available
4
Relay-starter motor cable
AP8112830
Not Available
5
Relay-starter motor cable
AP8124596
Not Available
5
Battery leads 550 mm
AP0265490
Not Available
6
Terminal cap
AP8120218
£4,01 Unit Price incl. VAT
7
Voltage regulator
AP8112906
Not Available
8
Screw w/ flange M5x20
AP8152274
£1,80 Unit Price incl. VAT
9
Starter relay 12V-150A
AP8124636
Not Available
10
Spring washer 6,4x11x0,5*
AP8150429
Not Available
11
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
12
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
13
Rubber fuse box
AP8144091
Not Available
14
Fuse 20A
AP8112506
Not Available
15
Fuse 15A
AP8112176
Not Available
16
Fuse 7,5A
AP8112244
Not Available

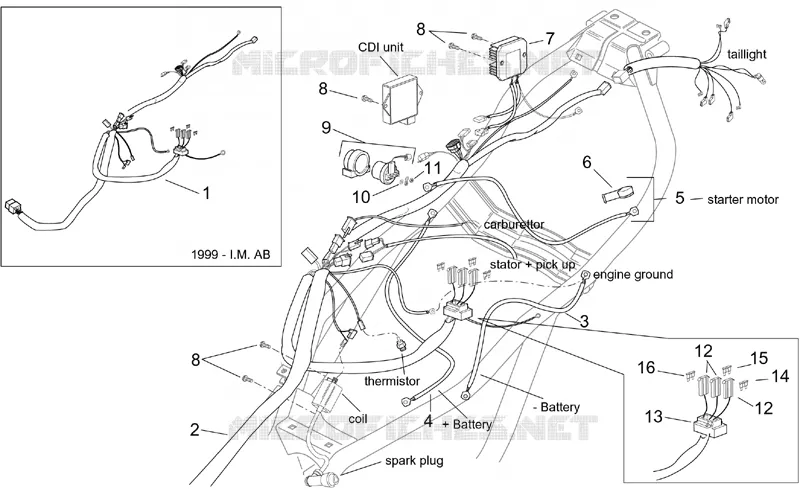

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
