1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2010
4
Trim
Atlantic E3
5
Parts Catalog
Rear wheel
6

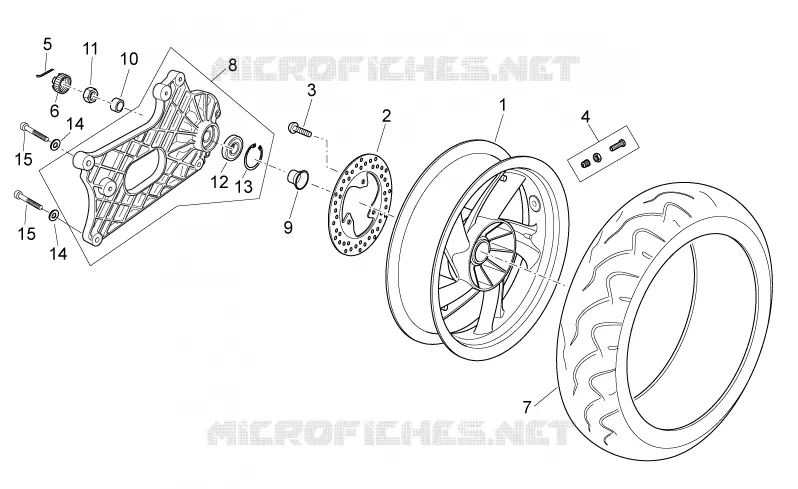

Parts Diagram
Parts Catalog
Frame
by
Cylinder
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
1
Rear wheel Silver
AP8128107
Not Available
1
Rear wheel Silver
AP8108990
£740,57 Unit Price incl. VAT
2
Rear brake disc
AP8133601
£91,20 Unit Price incl. VAT
3
Hex socket screw M8x25
AP8225358
Not Available
3
Hex socket screw M8x30
AP8152056
£2,59 Unit Price incl. VAT
4
Tubeless tyre valve
AP8202168
Not Available
4
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
5
Split pin
012789
Not Available
6
Nut hold cap
194423
Not Available
7
Tyre 130/70-13,6"
AP8109292
Not Available
8
Silencer supp. plate
AP8145037
£313,93 Unit Price incl. VAT
9
Rear wheel spacer
AP8121633
£17,12 Unit Price incl. VAT
10
Rear wheel spacer
AP8121634
Not Available
11
Nut M16x13
563728
£2,48 Unit Price incl. VAT
12
Bearing 6303-2RS1
AP8152402
Not Available
13
Ring 47
AP8152401
£1,87 Unit Price incl. VAT
14
Washer
AP8150018
£1,88 Unit Price incl. VAT
15
Hex socket screw M8x50
AP8150277
£1,94 Unit Price incl. VAT
