Filter for Leonardo from 2000

Free shipping for all orders to United Kingdom over £150! See conditions.

Filter

1

Filter housing base

AP8149612

Not Available

1

Filter housing base

AP8138151

Not Available

2

Filter housing cover

AP8120963

Not Available

3

Air filter housing seal

AP8102638

£16,22 Unit Price incl. VAT

4

Intake hose

AP8139963

£39,17 Unit Price incl. VAT

5

Filter guard

AP8138472

Not Available

6

Rear air filter

AP8102582

Not Available

7

Air filter housing seal

AP8102637

Not Available

8

Filter housing cover

AP8138152

Not Available

8

Filter housing cover

AP8149613

Not Available

9

2-way union

AP8102576

£7,45 Unit Price incl. VAT

10

Filter housing cover

AP8138999

Not Available

11

Intake manifold extension

AP8138677

Not Available

12

Filter housing base

AP8138684

Not Available

13

Silent-block

AP8101372

£1,88 Unit Price incl. VAT

14

Spacer

AP8121984

£3,67 Unit Price incl. VAT

15

Intake hose

AP8144202

£25,31 Unit Price incl. VAT

16

Intake hose

AP8120888

£65,06 Unit Price incl. VAT

17

Hose clip 290x8,9

AP8201409

£5,15 Unit Price incl. VAT

18

Gasket D3

AP8120615

£2,59 Unit Price incl. VAT

19

Self-tap screw 3,9x14

AP8150413

£1,61 Unit Price incl. VAT

20

Screw w/ flange M6x16

AP8152278

£1,91 Unit Price incl. VAT

21

Filter mesh

AP8138949

£22,85 Unit Price incl. VAT

22

Oil breather pipe

AP8120977

Not Available

23

Hose clip D22x8,6*

AP8201169

£5,05 Unit Price incl. VAT

24

Hose clamp 12,5x8

AP8102239

£3,06 Unit Price incl. VAT

25

Carburettor flange

AP0267137

Not Available

26

Fuel pipe 8x13

AP8120905

Not Available

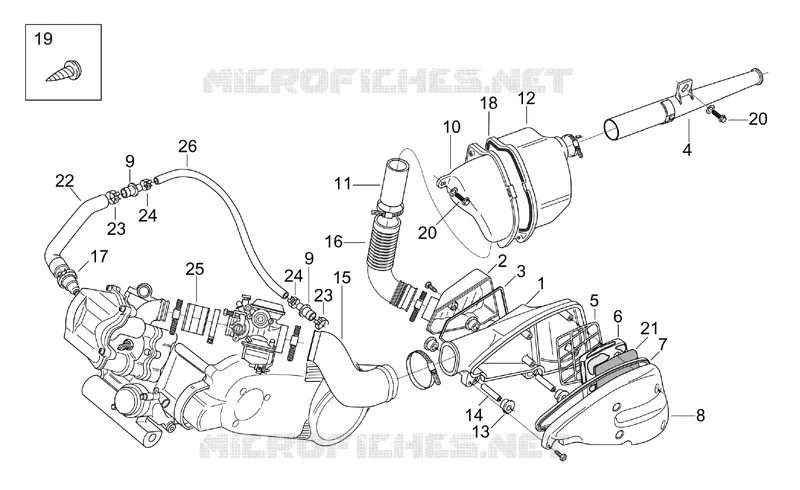

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
