1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog
RH controls
6
Parts Diagram
Parts Catalog
LH Controls
by
Water cooler

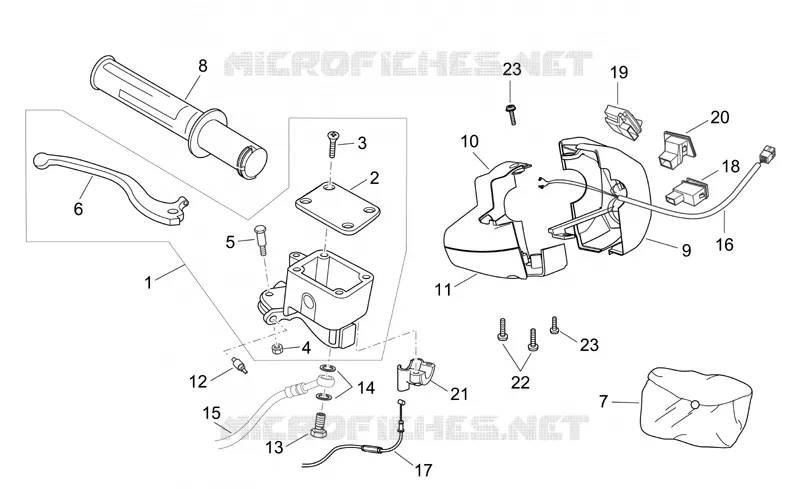

RH controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
1
Front master cilinder
AP8133734
Not Available
1
Front master cilinder
AP8133582
£413,68 Unit Price incl. VAT
2
Pump cover
AP8133808
Not Available
2
Pump cover
AP8113863
Not Available
3
Pump cover screw
AP8113859
Not Available
3
Pump cover screw
AP8133807
£7,28 Unit Price incl. VAT
4
Nut
AP8213298
£17,00 Unit Price incl. VAT
4
Nut
AP8213585
£7,48 Unit Price incl. VAT
5
Brake lever pin
AP8213584
£13,28 Unit Price incl. VAT
5
Lever screw
AP8125757
£12,31 Unit Price incl. VAT
6
Brake lever
AP8133811
£53,33 Unit Price incl. VAT
6
Brake lever
AP8118641
Not Available
7
Pump revision kit
AP8113864
£37,90 Unit Price incl. VAT
7
Pump revision kit
AP8133812
£57,88 Unit Price incl. VAT
8
Handgrip - pair
AP8118656
£29,53 Unit Price incl. VAT
9
RH el.controls place, black
AP8158897
£11,14 Unit Price incl. VAT
10
RH upper shell
AP8158932
£12,14 Unit Price incl. VAT
11
Lower shell
AP8158930
Not Available
12
stop Button
AP8127305
Not Available
13
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
14
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
15
Front brake hose
858232
Not Available
16
RH lights selector cable
AP8127393
Not Available
17
Throttle cable
AP8114449
Not Available
18
Start pushbutton
AP8124208
£25,14 Unit Price incl. VAT
19
Engine stop-start device
AP8224447
Not Available
20
Cover
AP8104546
£5,96 Unit Price incl. VAT
21
Throttle place
AP8118582
£8,51 Unit Price incl. VAT
22
Hex socket screw M5x25
AP8152270
£1,88 Unit Price incl. VAT
23
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
