1
Engine displacement
250
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog

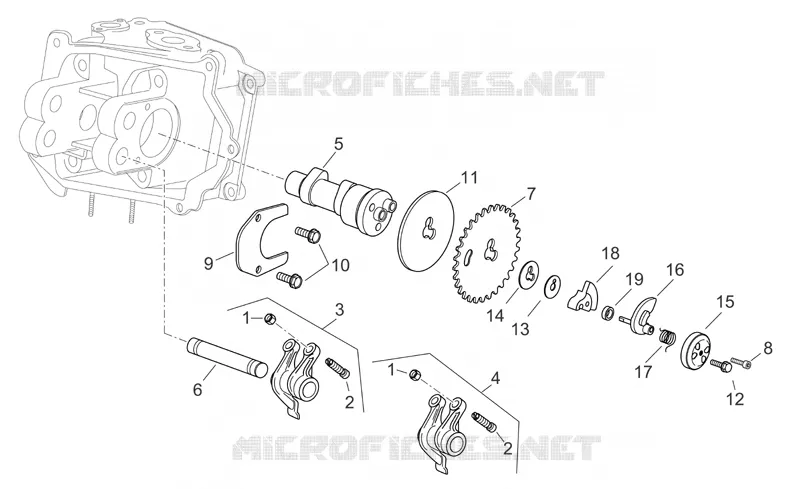

Camshaft
6
Parts Diagram
Parts Catalog
Cylinder head
by
Oil breather valve
Camshaft
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Rocker arm adjuster nut
AP8551047
Not Available
2
Valve adj.spec.screw
AP8551046
Not Available
3
Rocker arm assy., exhaust
AP8176284
Not Available
4
Rocker arm assy., inlet
AP8176283
Not Available
5
Camshaft
AP8176282
Not Available
5
Camshaft
AP8176323
Not Available
6
Rocker arms axis
AP8580098
Not Available
7
Timing system gear
AP8580097
Not Available
8
screw
AP8560008
Not Available
8
Hex socket screw M5x25
AP8580099
Not Available
9
plate
AP8580206
Not Available
10
Screw w/ flange
AP8551045
Not Available
11
plate
AP8580105
Not Available
12
Screw w/ flange
AP8540002
Not Available
12
screw M6x35
AP8550079
Not Available
13
Plain washer
AP8580187
Not Available
14
Plain washer
AP8580188
Not Available
15
Drum
AP8580129
Not Available
16
Weight
AP8577029
Not Available
17
Spring
AP8580100
Not Available
18
Counterweight
AP8580096
Not Available
19
Gasket
AP8580106
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
