1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2008
4
Trim
Atlantic
5
Parts Catalog

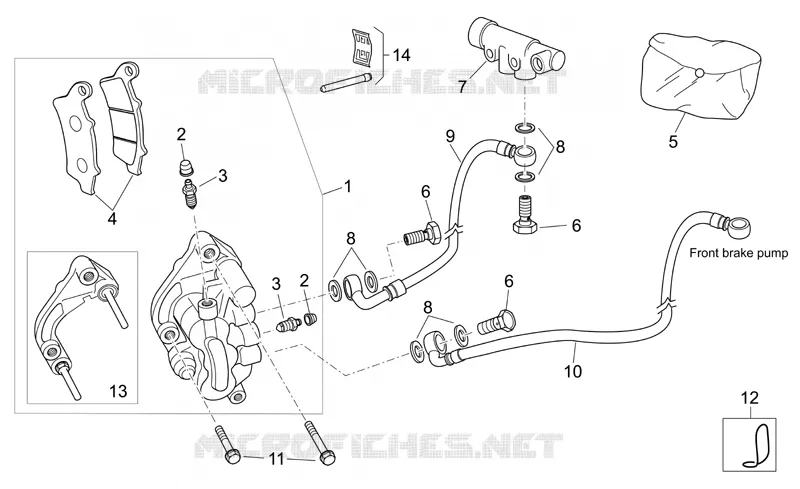

Front brake caliper
6
Parts Diagram
Parts Catalog
Front wheel
by
Rear wheel
Front brake caliper
1
2
2
3
3
4
5
6
6
6
7
8
8
8
9
10
11
12
13
14
1
Front brake caliper
AP8133525
Not Available
1
Front brake caliper
AP8133731
Not Available
2
Bleed valve cap
AP8133813
Not Available
2
Bleed valve cap
AP8113005
£5,94 Unit Price incl. VAT
3
Air bleed valve
AP8213108
£28,56 Unit Price incl. VAT
3
Air bleed valve
AP8133814
£27,53 Unit Price incl. VAT
4
Pads pair
AP8133815
£45,79 Unit Price incl. VAT
4
Pads pair
AP8133603
Not Available
5
Brake caliper rev. kit
AP8133604
£77,65 Unit Price incl. VAT
5
Brake caliper rev. kit
AP8133816
£34,20 Unit Price incl. VAT
6
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
7
Valve
AP8133738
Not Available
7
Valve
AP8113922
Not Available
8
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
9
pipe
858234
£55,54 Unit Price incl. VAT
10
Front brake hose
858232
Not Available
11
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
12
Cable-guide
AP8121856
£13,28 Unit Price incl. VAT
13
Brake caliper connect., cpl.
AP8146882
£301,61 Unit Price incl. VAT
13
Brake caliper connect., cpl.
AP8133817
£137,89 Unit Price incl. VAT
14
Pins+Caliper springs
AP8133818
£15,04 Unit Price incl. VAT
14
Pins+Caliper springs
AP8133760
£56,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
