Engine displacement
250
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Engine
Water cooler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
1
Fan, cpl.
AP8127241
Not Available
2
Water cooler
AP8104400
Not Available
3
Cooler-pump pipe
AP8144498
Not Available
4
Water cooler-head tube
AP8144497
Not Available
5
Water cooler support
AP8134811
Not Available
6
Thermal switch
AP8127441
£43,22 Unit Price incl. VAT
7
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
8
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
9
Clip M6
AP8102376
Not Available
10
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
11
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
12
Hex socket screw M6x20
AP8152137
£2,34 Unit Price incl. VAT
13
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
14
T bush
AP8221023
£1,64 Unit Price incl. VAT
15
Hose clamp D16-24x8*
AP8101573
£2,95 Unit Price incl. VAT
16
Hose clip D28x8,6*
AP8120536
£3,08 Unit Price incl. VAT
17
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT

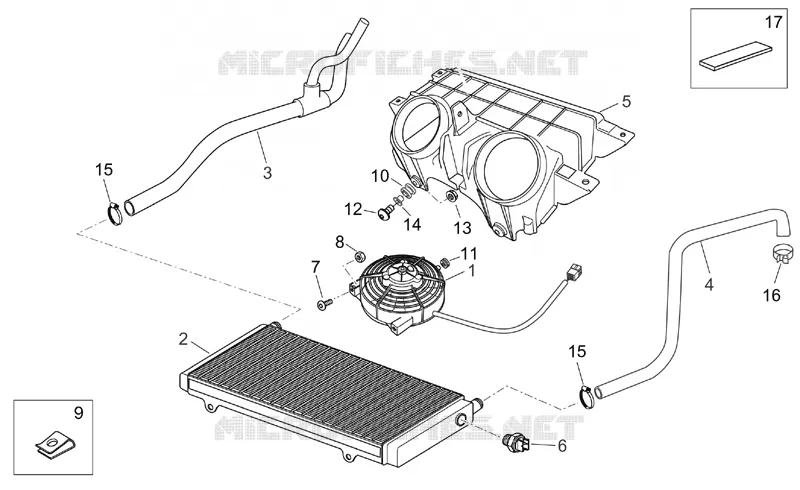

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
