Engine displacement
200
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Clutch
6

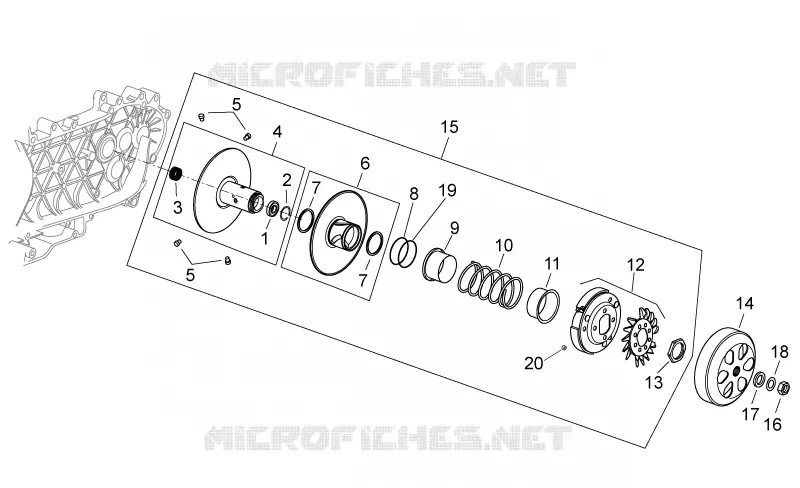

Parts Diagram
Parts Catalog
Rear body II
by
Starter motor II
Clutch
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Roller cage 20x29x18
AP8110104
Not Available
2
Snap ring
AP8580068
Not Available
3
Bearing 17x30x7
AP8125893
Not Available
4
Sec. fixed sheave, complete
AP8580208
Not Available
4
Sec. fixed sheave, complete
AP8580138
Not Available
5
Guide pin L=12,5
AP8580166
Not Available
5
Guide pin L=11,1
AP8550118
Not Available
6
Sec. sliding sheave, complete
AP8580139
Not Available
6
Sec. sliding sheave, complete
AP8580209
Not Available
6
Sec. sliding sheave, complete
AP8577055
Not Available
7
Gasket ring
AP8550124
Not Available
8
Gasket
AP8550116
Not Available
9
Cup
AP8580211
Not Available
9
Cup
AP8550115
Not Available
10
Variator spring
AP8580119
Not Available
10
Variator spring
AP8580210
Not Available
11
Cup
AP8550114
Not Available
12
Centrifugal clutch assy
AP8580171
Not Available
12
Centrifugal clutch assy
AP8575014
Not Available
12
Centrifugal clutch assy
AP8577092
Not Available
13
Ring nut
AP8550111
Not Available
14
Clutch drum
AP8577095
Not Available
14
Clutch drum
AP8580112
Not Available
15
Secondary pulley
AP8580197
Not Available
15
Secondary pulley
AP8590004
Not Available
15
Secondary pulley
AP8580133
Not Available
15
Secondary pulley
AP8580260
Not Available
16
Nut
AP8580095
Not Available
17
Spacer
AP8580145
Not Available
18
Washer
AP8580062
Not Available
19
Gasket
AP8550116
Not Available
19
Gasket
AP8577056
Not Available
20
Damper drift
AP8176091
Not Available
