Engine displacement
200
2
Model
ATLANTIC
3
Year
2004
4
Trim
Atlantic
5
Parts Catalog
Crankcase
6

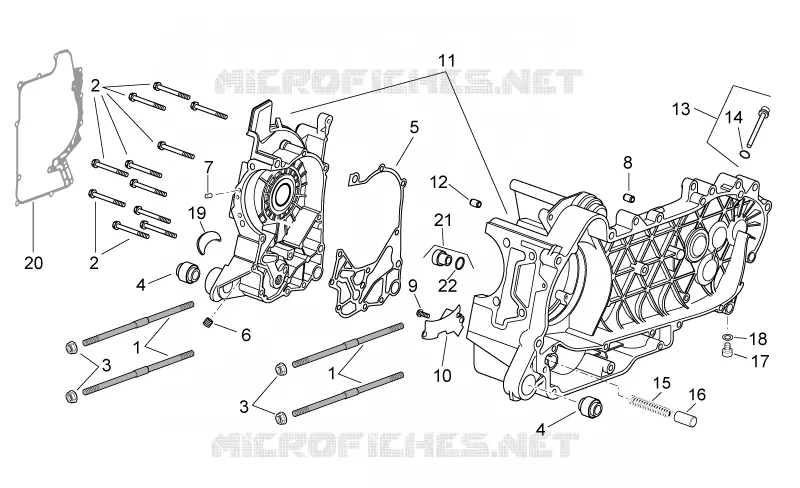

Parts Diagram
Parts Catalog
Oil filter
by
Crankshaft assy
Crankcase
1
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Stud bolt
AP8577003
Not Available
1
Stud bolt
AP8580174
Not Available
2
screw
AP8550283
Not Available
3
Cap nut
832870
£2,58 Unit Price incl. VAT
4
Silent-block
AP8220617
Not Available
5
Gasket
AP8553003
Not Available
5
Gasket
AP8580176
Not Available
6
Cover M12x1,5
AP8560014
Not Available
7
Nozzle
AP8560017
Not Available
8
Pin d.9,5 h=15
AP8550107
Not Available
9
screw
AP8560009
Not Available
10
plate
AP8580167
Not Available
11
Crankcase cpl.cat2
AP8553002
Not Available
11
Crankcase assy cat2
AP8580254
Not Available
11
Crankcase assy cat2
AP8580238
Not Available
11
Crankcase cpl.cat1
AP8553001
Not Available
11
Crankcase assy
AP8580253
Not Available
11
Crankcase assy
AP8580237
Not Available
12
Locating dowel
AP8551015
Not Available
13
Oil level rod cpl.
AP8550586
Not Available
14
O-ring
AP8550334
Not Available
15
Valve spring
AP8580087
Not Available
16
Oil pressure valve
AP8560142
Not Available
17
Transm.oil unload screw
AP8550361
Not Available
18
Alloy washer
AP8550304
Not Available
19
Intake oil cup
AP8575007
Not Available
20
Gasket
AP8577008
Not Available
21
Filter support insert
AP8268523
Not Available
22
Gasket
AP8550117
Not Available
