Engine displacement
200
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic
5
Parts Catalog
Fron fork II
6
Parts Diagram
Parts Catalog
Air box
by
Plate set-decal-op.handbooks
Fron fork II
1
2
3
4
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
17
18
18
19
20
21
22
23
24
1
Stop ring
AP8123760
Not Available
1
Circlip
AP8203950
£2,53 Unit Price incl. VAT
1
Stop ring
AP8163302
Not Available
2
Cover
AP8163300
Not Available
2
Cover
AP8123761
Not Available
2
Plug cpl.
AP8123698
Not Available
3
Spring
AP8163440
Not Available
3
Spring
AP8163223
Not Available
3
Spring
AP8123699
£49,81 Unit Price incl. VAT
4
Shock absorber
AP8163224
£55,21 Unit Price incl. VAT
4
Shock absorber
AP8163438
£68,59 Unit Price incl. VAT
4
Shock absorber
AP8163267
£63,10 Unit Price incl. VAT
5
Spring
AP8123764
£7,55 Unit Price incl. VAT
5
Return spring
AP8123708
£14,57 Unit Price incl. VAT
5
Return spring
AP8163291
£7,54 Unit Price incl. VAT
6
Stroke limit stop
AP8163289
£15,34 Unit Price incl. VAT
6
Stroke limit stop
AP8123701
£18,01 Unit Price incl. VAT
6
Stroke limit stop
AP8123765
£17,51 Unit Price incl. VAT
7
Sleeve
AP8123907
Not Available
7
Sleeve
AP8163290
£102,22 Unit Price incl. VAT
8
Ring
AP8123776
£38,23 Unit Price incl. VAT
8
Ring
AP8123754
£13,78 Unit Price incl. VAT
8
Ring
AP8163439
Not Available
9
Dust cover
AP8123767
Not Available
9
Dust cover
AP8203258
Not Available
9
Dust cover
AP8163298
£12,62 Unit Price incl. VAT
10
Stop ring
AP8163297
Not Available
10
Stop ring
AP8123704
Not Available
10
Stop ring
AP8123921
£3,48 Unit Price incl. VAT
11
Oil seal
AP8123769
£22,30 Unit Price incl. VAT
11
Oil seal
AP8163296
£15,11 Unit Price incl. VAT
11
Gasket ring
AP8103392
Not Available
12
Cup
AP8123705
Not Available
12
Oil seal washer
AP8123909
Not Available
12
Oil seal washer
AP8163295
Not Available
13
Bush
AP8123910
£17,77 Unit Price incl. VAT
13
Bush
AP8203447
£27,50 Unit Price incl. VAT
13
Bush
AP8163294
Not Available
14
LH sleeve
AP8163437
Not Available
14
LH sleeve
AP8163225
£288,73 Unit Price incl. VAT
15
RH sleeve
AP8163226
Not Available
15
RH sleeve
AP8163436
£26,53 Unit Price incl. VAT
16
screw
AP8121183
Not Available
16
Hex socket screw M6x20
AP8223054
£2,36 Unit Price incl. VAT
16
screw M6x20
AP8203796
£12,31 Unit Price incl. VAT
17
Seal washer
AP8163435
Not Available
17
Seal washer
AP8203572
£1,90 Unit Price incl. VAT
17
Washer
AP8203794
Not Available
18
screw M8x30
AP8163227
Not Available
18
screw M10x30
AP8163285
£4,09 Unit Price incl. VAT
18
Screw M8x30
AP8203570
Not Available
19
O-ring
AP8163301
Not Available
19
O-ring
AP8123775
Not Available
20
LH hub
AP8163031
£391,75 Unit Price incl. VAT
21
RH sleeve cpl.
AP8163270
Not Available
22
LH sleeve cpl.
AP8163271
Not Available
23
RH hub
AP8163030
£391,75 Unit Price incl. VAT
24
Brake disc stop decal
AP8166195
Not Available

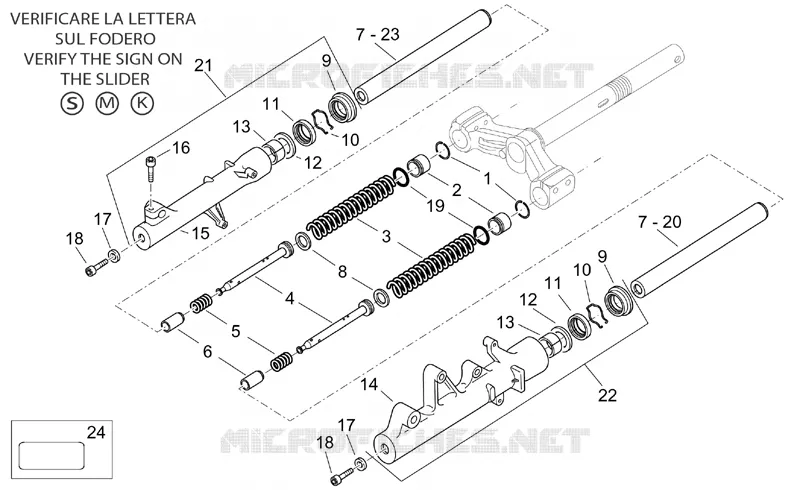

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
