Engine displacement
200
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Front body III
by
Front electrical system
Front body I
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
1
Windscreen
AP8158367
£336,58 Unit Price incl. VAT
1
Windscreen
AP8168926
Not Available
2
Dashboard panel, grey
AP8178997
Not Available
2
Dashboard panel
AP8158371
Not Available
3
RH side panel, grey
AP8168727
Not Available
3
RH side panel, blue
AP8179006
Not Available
3
RH side panel, grey
AP8168534
Not Available
3
RH side panel, white
AP8179043
Not Available
3
RH side panel, red
AP8158363
Not Available
3
RH side panel, red
AP8178041
Not Available
3
RH side panel, green
AP8179010
Not Available
3
RH side panel, green
AP8178553
Not Available
3
RH side panel, cyan
AP8179249
Not Available
3
RH side panel, red
AP8168494
Not Available
3
RH side panel, grey
AP8178371
Not Available
3
RH side panel, grey
AP8178216
Not Available
3
RH side panel, blue
AP8168523
Not Available
3
RH side panel, grey
AP8178992
Not Available
3
RH side panel, green
AP8168538
Not Available
3
RH side panel, cyan
AP8178380
Not Available
3
RH side panel, green
AP8168540
Not Available
4
LH side panel, cyan
AP8179250
Not Available
4
LH side panel, blue
AP8179007
£68,24 Unit Price incl. VAT
4
LH hol.panel, grey
AP8178217
Not Available
4
LH hol.panel, grey
AP8168728
£72,68 Unit Price incl. VAT
4
LH hol.panel, grey
AP8178372
Not Available
4
LH side panel, white
AP8179044
Not Available
4
LH side panel, grey
AP8178993
Not Available
4
LH side panel, cyan
AP8178381
Not Available
4
LH side panel, grey
AP8168535
Not Available
4
LH side panel, green
AP8168539
Not Available
4
LH side panel, blue
AP8168524
Not Available
4
LH side panel, red
AP8178042
Not Available
4
LH side panel, red
AP8158364
Not Available
4
LH side panel, red
AP8168495
Not Available
4
LH side panel, green
AP8168541
Not Available
4
LH side panel, green
AP8178554
Not Available
4
LH side panel, green
AP8179011
£58,84 Unit Price incl. VAT
5
Front fairing, black
AP8158365
Not Available
5
Front fairing, grey
AP8178991
Not Available
6
Dashboard lockup
AP8158370
Not Available
7
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
8
Rubber spacer
AP8120594
£3,13 Unit Price incl. VAT
9
RH Front reflector support
AP8249104
£5,80 Unit Price incl. VAT
10
LH Front reflector support
AP8249105
Not Available
11
Reflector, amber
AP8224163
£11,24 Unit Price incl. VAT
12
RH orange lens
AP8104760
£31,10 Unit Price incl. VAT
13
RH up.cover turn indicator
AP8127519
Not Available
14
LH up.cover turn indicator
AP8127520
£54,80 Unit Price incl. VAT
15
RH lo.cover turn indicator
AP8127550
Not Available
16
LH lo.cover turn indicator
AP8127551
Not Available
17
LH orange lens
AP8104759
£31,10 Unit Price incl. VAT
18
RH front turn indicator
AP8127517
£75,56 Unit Price incl. VAT
19
LH front turn indicator
AP8127518
£80,17 Unit Price incl. VAT
20
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
21
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
22
Screw clip
AP8144599
Not Available

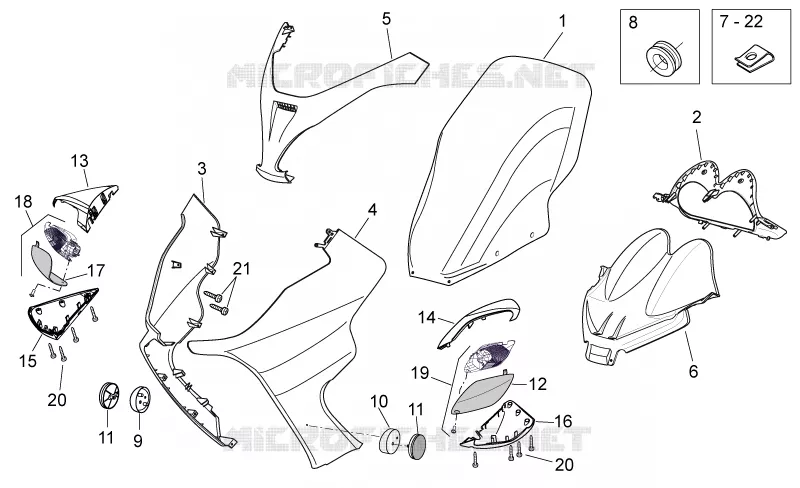

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
