Engine displacement
125
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Front body II
6
Parts Diagram
Parts Catalog
Front wheel
by
Rear electrical system
Front body II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
RH turn indicator
AP8158777
£12,14 Unit Price incl. VAT
2
LH turn indicator
AP8158778
£12,14 Unit Price incl. VAT
3
Internal shield, grey
AP8158372
£84,52 Unit Price incl. VAT
4
Glove comp.door, grey
AP8158373
£26,50 Unit Price incl. VAT
5
Glove compartment
AP8158899
£27,25 Unit Price incl. VAT
6
Type appr.data cover, black
AP8149478
Not Available
7
Glove comp.door gasket
AP8144570
Not Available
8
Undersaddle hook cpl.
AP8201534
£40,78 Unit Price incl. VAT
9
Screw 4,2x25*
AP8150423
£1,80 Unit Price incl. VAT
10
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
11
Plate
AP8134799
Not Available
12
Front box lock
AP8104612
Not Available
13
Lock nut M22x1,5
AP8102523
£9,53 Unit Price incl. VAT
14
Clip M4
AP8102381
£4,02 Unit Price incl. VAT

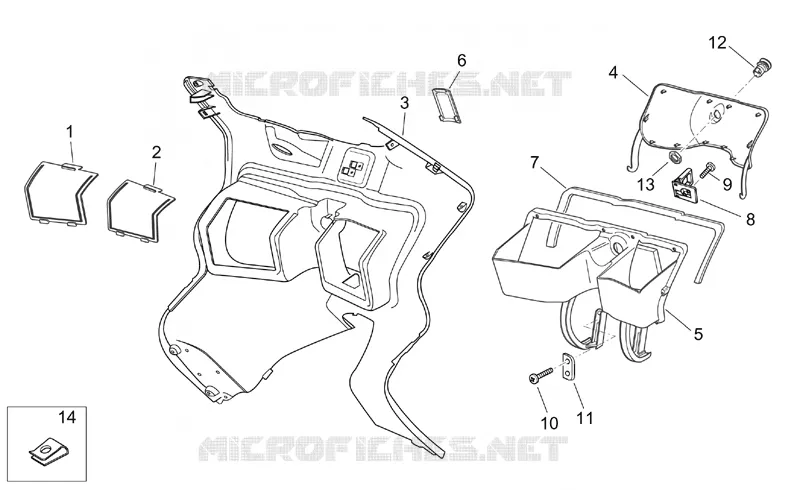

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
