Engine displacement
125
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Rear body II
6
Parts Diagram
Parts Catalog
RH controls
by
Clutch
Rear body II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
16
17
18
19
20
21
22
1
Rear fairing, bronze
AP8158387
Not Available
1
Rear fairing, grey
AP8179001
Not Available
2
Number plate holder, grey
AP8126961
£42,89 Unit Price incl. VAT
3
Rear handle, grey
AP8158388
Not Available
4
Luggage rack cover, blue
AP8168522
Not Available
4
Luggage rack cover, red
AP8158389
Not Available
4
Luggage rack cover, grey
AP8178379
Not Available
4
Luggage rack cover, grey
AP8168533
Not Available
4
Luggage rack cover, grey
AP8179002
Not Available
4
Luggage rack cover, grey
AP8168726
Not Available
4
Luggage rack cover, green
AP8168544
Not Available
4
Luggage rack cover, cyan
AP8178388
Not Available
5
RH plug
AP8168046
£5,94 Unit Price incl. VAT
6
LH plug
AP8168047
£5,94 Unit Price incl. VAT
7
Number-plate light
AP8127261
£31,33 Unit Price incl. VAT
8
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
9
Rear reflector, red
AP8124718
£16,44 Unit Price incl. VAT
10
Washer 4,3x16*
AP8150159
£1,88 Unit Price incl. VAT
11
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
12
Screw w/ flange
AP8152293
£1,32 Unit Price incl. VAT
13
Washer
AP8150018
£1,88 Unit Price incl. VAT
14
Bush
AP8121635
Not Available
15
Screw w/ flange
AP8152283
£2,17 Unit Price incl. VAT
16
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
17
Rear reflector support
AP8258253
£37,45 Unit Price incl. VAT
18
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
19
Number plate support
AP8149034
£25,42 Unit Price incl. VAT
20
Self-locking nut M5
AP8152306
Not Available
21
Rear reflector support
AP8258253
£37,45 Unit Price incl. VAT
22
Number-plate light
AP8212702
Not Available

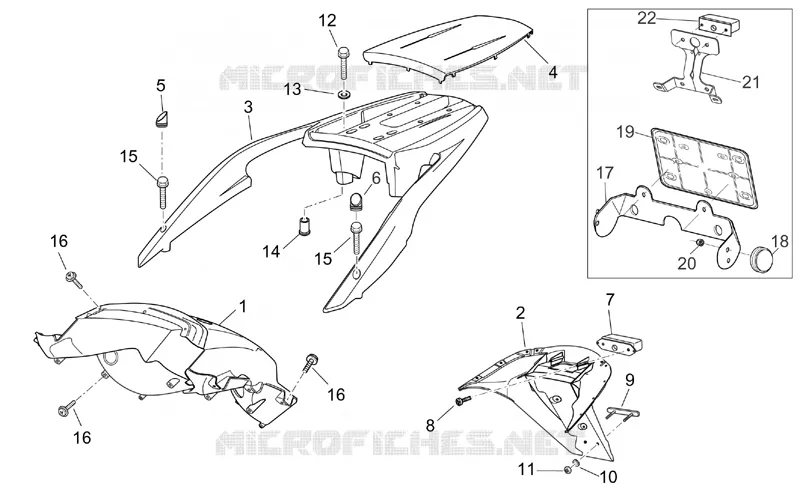

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
