Engine displacement
250
2
Model
ATLANTIC
3
Year
2004
4
Trim
Atlantic
5
Parts Catalog
Secondary air II
6

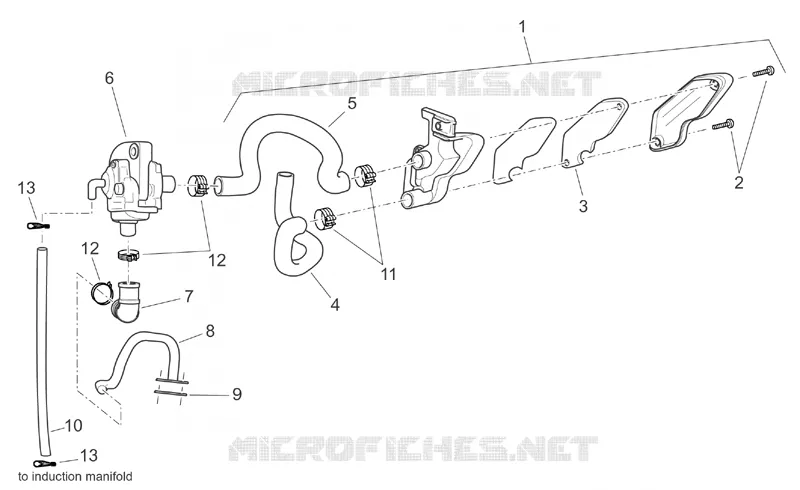

Parts Diagram
Parts Catalog
LH Controls
by
Chain tensioner
Secondary air II
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
1
Sas box
AP8577083
Not Available
2
Self-tap screw 3x20
AP8580061
Not Available
3
Filter
AP8577084
Not Available
4
Intake pipe
AP8577091
Not Available
5
Intake pipe sas
AP8577085
Not Available
6
SAS valve
AP8580127
Not Available
7
Hose
AP8577089
Not Available
8
Air pipe sas
AP8577090
Not Available
9
Gasket
AP8570089
Not Available
10
Fuel pipe 5,5x10
AP8120952
Not Available
11
Hose clamp
AP8570116
Not Available
12
Hose clamp
AP8144579
Not Available
13
Hose clamp
AP8515050
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
