Parts Catalog

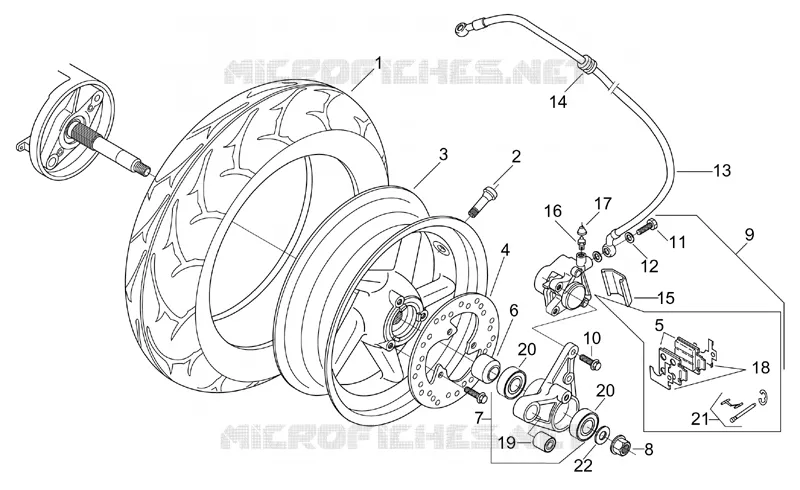

Rear wheel
6
Parts Diagram
Parts Catalog
Decal set
by
Fuel tank
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
1
Tyre
0000000
Not Available
2
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
3
Rear wheel
AP8108706
Not Available
4
Brake disc D190
AP8213231
£46,99 Unit Price incl. VAT
5
Rear pads pair
AP8113663
£29,50 Unit Price incl. VAT
5
Pads pair
AP8113644
£37,49 Unit Price incl. VAT
6
Rear wheel spacer
AP8125726
£34,73 Unit Price incl. VAT
7
Brake hanger plate cpl.
AP8134308
Not Available
8
DAX flange nut M14x1,5
AP8152244
£3,62 Unit Price incl. VAT
9
Rear brake caliper D30
AP8113659
Not Available
10
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
11
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
12
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
13
Rear brake hose
AP8113657
Not Available
14
Cable-guide
AP8121856
£13,28 Unit Price incl. VAT
15
Brake caliper cover
AP8213224
Not Available
16
Air bleed valve
AP8213108
£28,56 Unit Price incl. VAT
17
Bleed valve cap
AP8113005
£5,94 Unit Price incl. VAT
18
F.antiwhistle plate-pair
AP8113678
Not Available
19
Silent-block
AP8120970
Not Available
20
Ball bearing
AP8110083
Not Available
21
Pin+Brake spring
AP8213227
£38,36 Unit Price incl. VAT
22
Spring washer 14,5x24
AP8150471
£4,14 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
