1
Engine displacement
125
2
Model
AF1
3
Year
1990
4
Trim
AF1 FUTURA
5
Parts Catalog

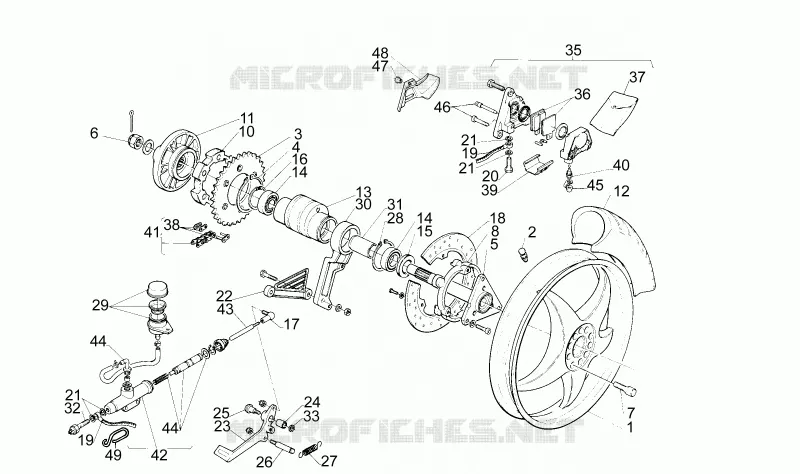

Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Frame
Rear wheel
1
2
3
4
5
6
7
8
10
11
12
13
14
14
15
16
17
18
19
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
35
36
37
38
39
40
41
42
43
44
44
45
46
47
48
49
1
Rear wheel
AP8108483
Not Available
1
Rear wheel 3,50x17
AP8108413
Not Available
2
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
3
Chain ring Z=38
AP8107083
Not Available
3
Chain ring Z=36
AP8107082
Not Available
4
Seeger
AP8125366
Not Available
5
Pin
AP8125501
Not Available
6
Nut M20x1,5
AP8152093
Not Available
7
Wheel screw
AP8152092
Not Available
8
Spacer
AP8125404
Not Available
10
Flexible coupling rubber
AP8125372
Not Available
11
Spring drive holder
AP8125389
Not Available
12
Missing description
AP
Not Available
13
Cam
AP8125607
Not Available
14
Bearing
AP8110046
Not Available
15
O-ring 4087
AP8120280
£1,01 Unit Price incl. VAT
15
Dust cover
AP8120490
Not Available
16
Snap ring
AP8221051
Not Available
17
RH ball joint M6
AP8210007
£15,91 Unit Price incl. VAT
18
Rear brake disc d.240
AP8113209
Not Available
19
Rear brake hose
AP8113444
Not Available
19
Rear brake hose
AP8113246
Not Available
20
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
21
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
22
plate
AP8101748
Not Available
23
Rear brake lever
AP8132635
Not Available
24
Spacer *
AP8121147
Not Available
25
Brake lever pin
AP8121149
Not Available
26
Springs fixing pin
AP8121148
Not Available
27
Coil pull spring *
AP8121118
£2,54 Unit Price incl. VAT
28
Snap ring
AP8125368
Not Available
29
Oil tank
AP8213086
Not Available
30
Brake caliper plate
AP8134146
Not Available
31
Bush
AP8121146
Not Available
32
Stop switch
AP8112668
Not Available
33
Belleville spring
AP8121697
Not Available
35
Rear brake caliper d.32
AP8113279
Not Available
36
Pads pair
AP8113064
Not Available
37
Brake caliper rev. kit
AP8113198
Not Available
38
Connecting link
AP8107043
Not Available
39
Rear brake caliper cover
AP8113201
Not Available
40
Air bleed valve
AP8113200
Not Available
41
Chain cpl conn.link
AP8107089
Not Available
42
Rear master cyl.w/out tank
AP8113254
Not Available
43
Rear master cyl.rod
AP8113248
£3,83 Unit Price incl. VAT
44
Rear pump rev. kit
AP8113322
Not Available
45
Bleed valve cap
AP8113070
£13,98 Unit Price incl. VAT
46
Pins, set
AP8113199
Not Available
47
T bush 8,2x12x4
AP8121096
£1,96 Unit Price incl. VAT
48
Disk guard, black
AP8131388
Not Available
49
Cable-guide
AP8120512
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
