1
Engine displacement
750
2
Model
DORSODURO
3
Year
2015
4
Trim
Dorsoduro ABS
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Foot rests
by
Water pump II

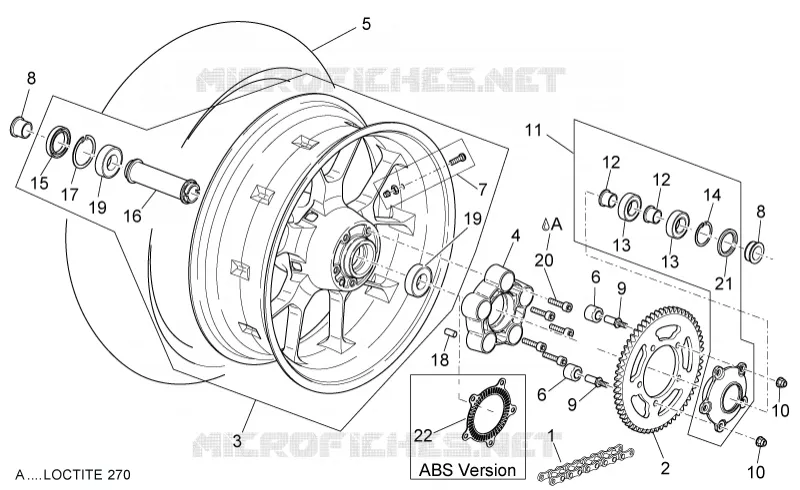

Rear wheel
22
21
20
19
19
18
17
16
15
14
13
13
12
12
11
10
10
9
9
8
8
7
6
6
5
4
3
2
1
1
Chain 525
856805
£175,49 Unit Price incl. VAT
2
Chain ring Z=46 AL
856803
Not Available
3
Rear wheel, black 6"x17"
860694
Not Available
4
Rear wheel spring drive holder
AP8128231
Not Available
5
Rear tyre
85157R
Not Available
6
Flexible coupling rubber
AP8125731
Not Available
7
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
8
Rear wheel spacer
AP8121592
£53,63 Unit Price incl. VAT
9
Pin
B045033
£13,34 Unit Price incl. VAT
10
Nut
564878
£1,06 Unit Price incl. VAT
11
Crown holder cpl.
AP8125730
Not Available
12
Spring drive spacer
AP8125732
£86,94 Unit Price incl. VAT
13
Bearing 30x55x13
AP8110081
£25,36 Unit Price incl. VAT
14
Inside circlip d55
AP8121212
£2,80 Unit Price incl. VAT
15
Gasket ring 38x52x7
AP8125786
£51,38 Unit Price incl. VAT
16
Internal spacer
AP8128170
£39,96 Unit Price incl. VAT
17
Circlip
AP8125788
£14,47 Unit Price incl. VAT
18
Pin 10x20
AP8150463
£2,80 Unit Price incl. VAT
19
Bearing 6205-2rs1 25x52x15
AP8106806
£66,94 Unit Price incl. VAT
20
Hex socket screw M10x30
AP8150195
£1,88 Unit Price incl. VAT
21
Gasket ring 38x55x7
AP8121213
£13,72 Unit Price incl. VAT
22
Phonic wheel ABS
890960
£37,02 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
