1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Crankcases I
by
Rear cylinder timing system
Steering
17
16
16
16
15
14
14
13
12
11
11
11
12
11
10
10
9
9
8
7
6
5
4
3
2
2
1
1
Lower fork plate
856496
£673,24 Unit Price incl. VAT
2
Screw
AP8150540
£10,54 Unit Price incl. VAT
3
Washer
897648
£25,90 Unit Price incl. VAT
4
Roller bearing
AP8110106
£28,51 Unit Price incl. VAT
5
Gasket ring
AP8144146
£13,28 Unit Price incl. VAT
6
Ring nut
AP8163500
£17,76 Unit Price incl. VAT
7
Stem plug washer
AP8152442
£4,50 Unit Price incl. VAT
8
Plug
853470
£21,43 Unit Price incl. VAT
9
screw M10x60
AP8150049
£13,28 Unit Price incl. VAT
10
Cup
AP8123511
Not Available
11
Rubber spacer
AP8144222
£7,21 Unit Price incl. VAT
12
Lower U-bolt D28,5
B044862
£66,08 Unit Price incl. VAT
13
Fork upper plate
898386
£237,65 Unit Price incl. VAT
14
Spacer 10,1x14,1x38
854827
£2,68 Unit Price incl. VAT
15
Lower Gasket ring
AP9100205
£15,91 Unit Price incl. VAT
16
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
17
Low head socket screw
AP8152187
£1,21 Unit Price incl. VAT

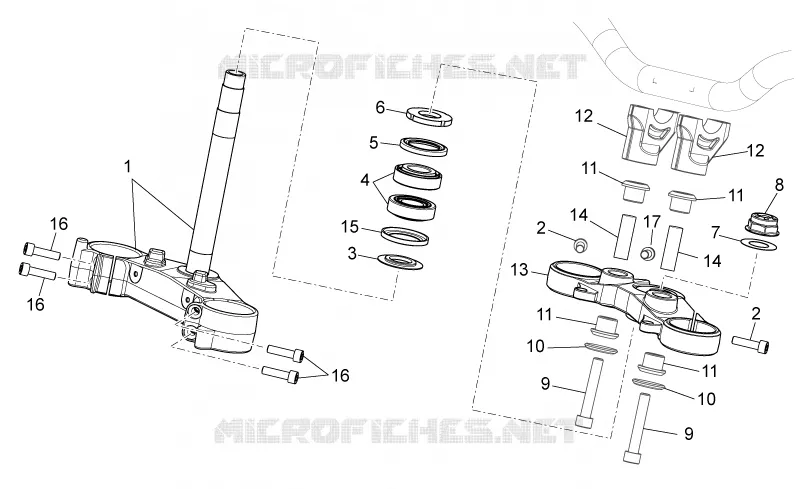

Find the detailed Steering APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
