1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Saddle support
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Rear brake system
Saddle support
19
18
18
17
16
15
15
14
13
12
12
12
11
10
10
9
8
7
7
6
5
5
4
3
3
2
1
1
Saddle support, grey
85495200XH7
£1 484,69 Unit Price incl. VAT
2
Hex socket screw
478761
£1,57 Unit Price incl. VAT
3
Bush
860909
£10,03 Unit Price incl. VAT
4
Spacer
854962
£10,03 Unit Price incl. VAT
5
Nut
AP8152350
£1,26 Unit Price incl. VAT
6
Hex socket screw M8x55
AP8150046
£1,85 Unit Price incl. VAT
7
Hex socket screw M8x40
AP8150171
Not Available
8
Exhaust pipe support clamp
851789
£54,64 Unit Price incl. VAT
9
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
10
Washer
AP8150018
£1,88 Unit Price incl. VAT
11
Spring plate M8
575268
£2,24 Unit Price incl. VAT
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
14
Pillion seat strap
898025
£38,74 Unit Price incl. VAT
15
Plate
890486
£7,85 Unit Price incl. VAT
16
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
17
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
18
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
19
Hose clamp
GU06609600
£2,39 Unit Price incl. VAT

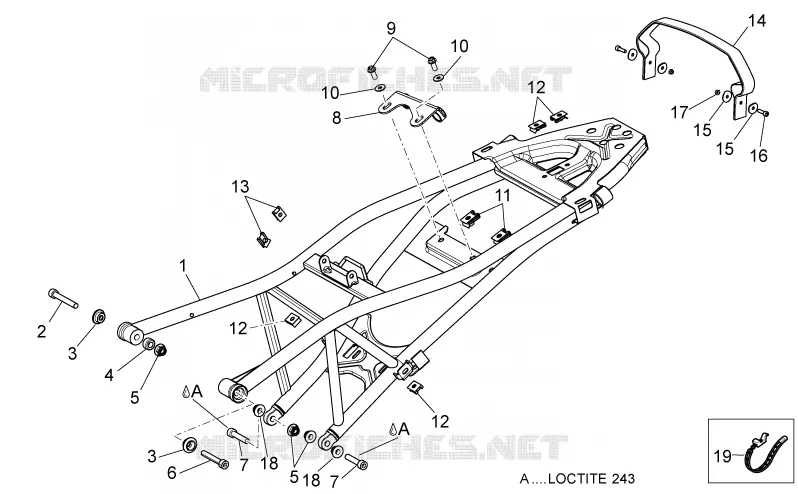

Find the detailed Saddle support APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
