Parts Catalog
Rear cylinder timing system
6
Parts Diagram
Parts Catalog
Steering
by

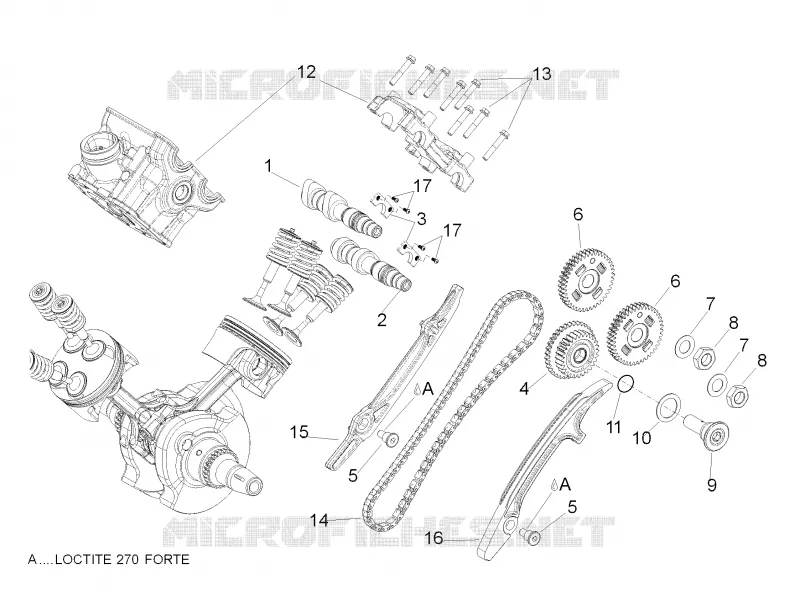

Rear cylinder timing system
11
10
9
8
8
7
7
6
6
5
5
4
3
2
1
17
17
16
15
14
13
12
1
Rear intake camshaft
873962
Not Available
2
Rear exhaust camshaft
873963
Not Available
3
Axial lock plate
874176
Not Available
4
Timing system gear cpl.
874596
Not Available
5
Spacer screw
974228
£12,19 Unit Price incl. VAT
6
Rear timing system gear cpl.
849910
Not Available
7
Thrust washer
874744
£3,77 Unit Price incl. VAT
8
Nut M15x1 SX
874752
£14,35 Unit Price incl. VAT
9
Special screw
874591
Not Available
10
Safety washer
849817
£3,72 Unit Price incl. VAT
11
Gasket ring
873233
£1,27 Unit Price incl. VAT
12
Cylinder head assy.
849213
Not Available
12
Cylinder head assy.
82970R
Not Available
12
Cylinder head assy.
83000R2
Not Available
13
Torx convex big end screw
878439
£2,03 Unit Price incl. VAT
13
Screw w/ flange
B016191
£1,58 Unit Price incl. VAT
14
Camshaft chain
849827
£171,90 Unit Price incl. VAT
15
Chain guide plate
871798
£17,38 Unit Price incl. VAT
16
Chain tensioner rod
871748
£23,32 Unit Price incl. VAT
17
Screw
874185
£2,36 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
