1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Rear body II
6
Parts Diagram
Parts Catalog
Dashboard
by
Cooling system
Rear body II
5
4
3
3
3
2
2
1
9
9
8
8
8
8
6
7
15
15
15
14
13
12
10
11
12
1
Rear fairing, diablo black
B04420600XN6
Not Available
2
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
3
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
4
Right silencer cover
B044370
£235,38 Unit Price incl. VAT
5
Left silencer cover
B044369
£235,38 Unit Price incl. VAT
6
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
7
T bush
AP8221341
£5,87 Unit Price incl. VAT
8
Rubber spacer
AP8120712
£1,60 Unit Price incl. VAT
9
Spring plate M6
254485
£1,64 Unit Price incl. VAT
10
RH Guard decal
860931
£7,33 Unit Price incl. VAT
11
LH Guard decal
860932
£7,33 Unit Price incl. VAT
12
Hex socket screw M6x30
AP8152128
£1,88 Unit Price incl. VAT
13
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
14
T bush
860331
£15,16 Unit Price incl. VAT
15
T bush
AP8221340
£5,27 Unit Price incl. VAT

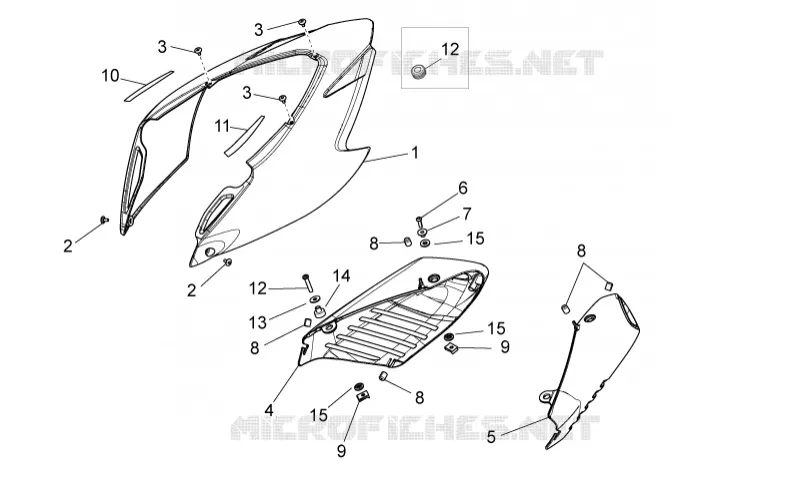

Find the detailed Rear body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
