1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Gear box selector
6
Parts Diagram
Parts Catalog
Front cylinder timing system
by
Fuel vapour recover system
Gear box selector
28
27
26
25
24
23
22
20
21
19
18
17
17
16
16
15
14
13
12
11
10
9
9
8
7
6
5
4
4
3
2
1
1
Selector drum
849693
£115,56 Unit Price incl. VAT
2
Fork
849360
£54,59 Unit Price incl. VAT
3
Fork
849468
Not Available
4
Fork shaft
974084
£40,85 Unit Price incl. VAT
5
Index assy. lever
872154
Not Available
6
Gear stop lever spring
B013306
£6,85 Unit Price incl. VAT
7
Threaded pin
B013928
£14,62 Unit Price incl. VAT
8
Selector lock plate
871649
£18,92 Unit Price incl. VAT
9
screw
878867
£2,48 Unit Price incl. VAT
10
Gear shaft+spring cpl.
874129
Not Available
11
Flat washer 14x30x1
971718
£1,43 Unit Price incl. VAT
12
Switch plate spring
971719
£7,63 Unit Price incl. VAT
13
Threaded pin M8x1,25
878870
£32,76 Unit Price incl. VAT
14
Shift cam plate
872560
£67,60 Unit Price incl. VAT
15
Selector drum
B017809
£59,42 Unit Price incl. VAT
16
Lever
AP9150069
£8,29 Unit Price incl. VAT
17
Spring
AP9150064
£13,60 Unit Price incl. VAT
18
Spring pillar
AP9150070
£16,34 Unit Price incl. VAT
19
Phonic wheel
878742
£76,33 Unit Price incl. VAT
20
Hex socket screw
844211
Not Available
21
O-ring D23,52x1,78
AP9150479
£3,26 Unit Price incl. VAT
22
Sensor
58188R
£78,37 Unit Price incl. VAT
23
Spacer
974558
£31,90 Unit Price incl. VAT
24
Gasket OR
871901
£1,03 Unit Price incl. VAT
25
Selector lock
974130
£28,14 Unit Price incl. VAT
26
Spring
873695
£7,63 Unit Price incl. VAT
27
Spring pillar
AP9150003
£8,28 Unit Price incl. VAT
28
Self locking nut
597565
£1,00 Unit Price incl. VAT

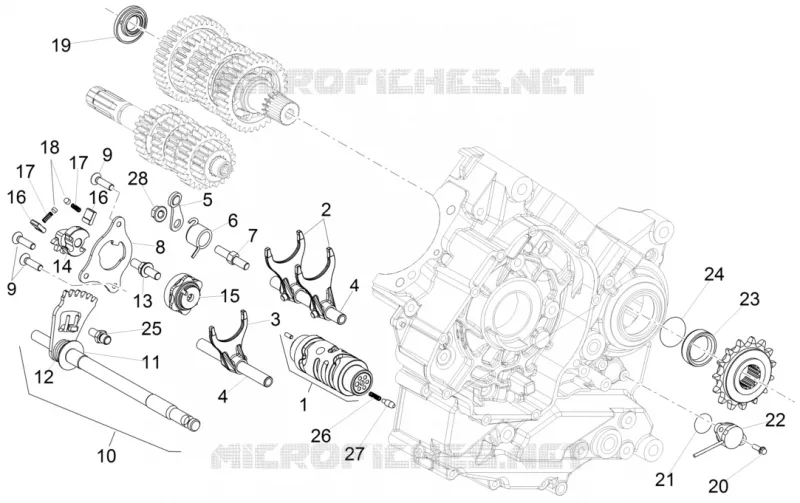

Find the detailed Gear box selector APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
